Briggs and Stratton 305447-0633-B5

Model: 305447-0633-B5

Back To Assemblies

Save Part Not Listed?
product name

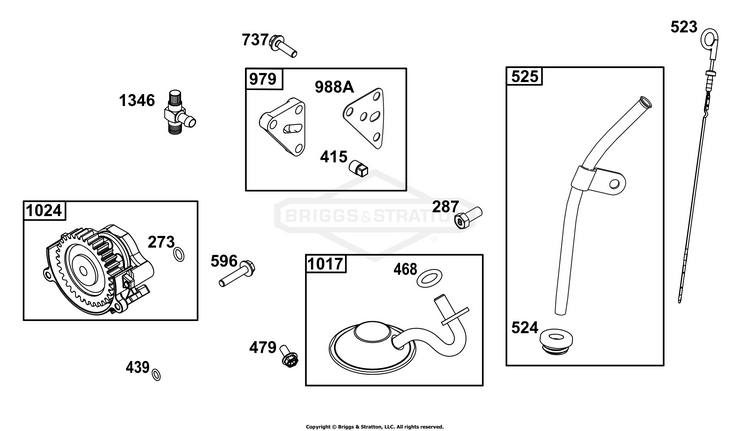

Lubrication Group

...
...
273
SEAL, O-Ring (Oil Pump) BS-690681
...
287
SCREW (Dipstick Tube) BS-692062
...
415
PLUG BS-794903
...
439
O-RING, Oil Gallery (Crankcase Cover/Sump or Cylinder Assembly) BS-692154
...
468
SEAL, O-Ring (Oil Pump Screen) BS-690690
...
479
SCREW (Oil Pump Screen) BS-807084
...
523
DIPSTICK BS-693175
...
524
SEAL, O-Ring (Dipstick Tube) BS-693172
...
525
TUBE, Dipstick BS-693174
...
596
SCREW (Oil Pump) BS-691492
...
737
SCREW (Oil Filter Adapter) BS-84006523
...
979
COVER, Oil Filter BS-807689
...
988A
GASKET, Oil Adapter BS-690687
...
1017
SCREEN, Oil Pump BS-690900
...
1024
PUMP, Oil BS-843825
...
1346
VALVE, Oil Drain Shut Off BS-492031
