Briggs and Stratton 305447-0342-B5

Model: 305447-0342-B5

Back To Assemblies

Save Part Not Listed?
product name

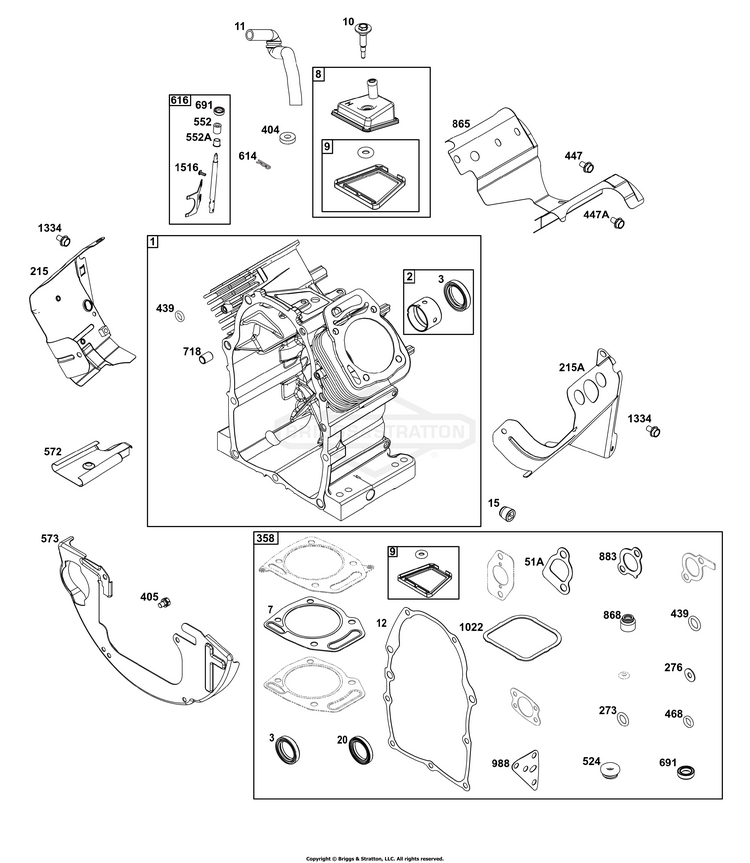

Cylinder Group

...
...
1
CYLINDER ASSEMBLY BS-84010909
...
2
KIT, BUSHING/SEAL (Magneto Side) BS-84013005
...
3
SEAL, Oil (Magneto Side) BS-845659
...
8
BREATHER ASSEMBLY BS-808984
...
9
GASKET, Breather BS-844986
...
10
SCREW (Breather Assembly) BS-690751
...
11
TUBE, Breather BS-844921
...
15
PLUG, Oil Drain BS-691680
...
215
GUIDE, Air BS-841183
...
215A
GUIDE, Air BS-841182
...
358
GASKET SET, ENGINE (Service Kits may include extra parts not specific to this engine.) BS-84006710
...
404
WASHER (Governor Crank) BS-690704
...
405
SCREW (Back Plate) BS-807163
...
447
SCREW (Air Guide Cover) BS-807084
...
447A
SCREW (Air Guide Cover) BS-841233
...
572
BAFFLE, Breather BS-690686
...
573
PLATE, Back BS-841310
...
614
PIN, Cotter BS-691550
...
718
PIN, Locating BS-806469
...
865
COVER, Air Guide BS-843768
...
1334
SCREW (Air Guide) BS-841233
