Briggs and Stratton 305445-3214-G1

Model: 305445-3214-G1

Back To Assemblies

Save Part Not Listed?
product name

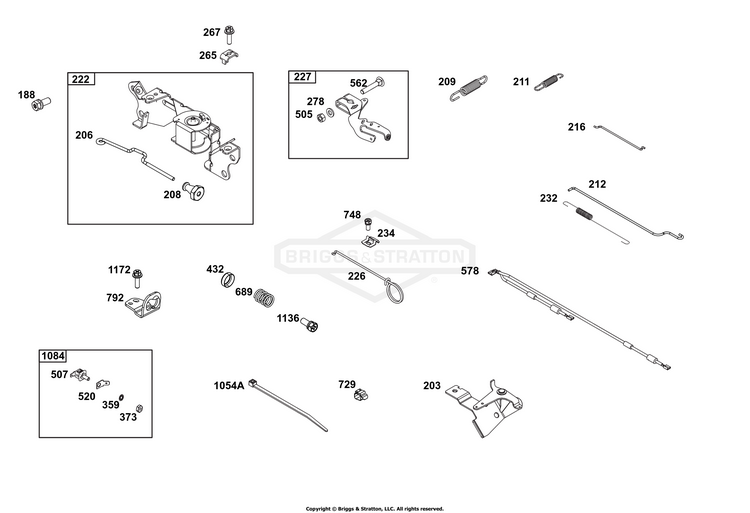

Controls Group

...
...
188
SCREW (Control Bracket) BS-692062
...
203
CRANK, Bell BS-690923
...
206
NUT, Governor Adjusting BS-691244
...
208
ROD, Governor Control BS-808453
...
209
SPRING, Governor BS-692072
...
211
SPRING, Governed Idle BS-692069
...
212
LINK, Throttle BS-847015
...
216
LINK, Choke BS-690705
...
222
BRACKET, Control BS-808454
...
226
ROD, Choke BS-692075
...
227
LEVER, Governor Control BS-690236
...
232
SPRING, Governor Link BS-692073
...
234
CLIP, Control Rod BS-691723
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-841552
...
278
WASHER (Governor Control Lever) BS-842122
...
359
WASHER (Ground Terminal) BS-691077
...
373
NUT, Hex #8-32 (Ground Terminal) BS-703460
...
432
CAP, Spring BS-691509
...
505
NUT (Governor Control Lever) BS-844752
...
507
INSULATOR BS-691972
...
520
TERMINAL, Ground BS-691084
...
562
LEVER, Governor Control (Governor Control Lever) BS-844799
...
578
HARNESS, WIRING BS-84013450
...
689
SPRING, Friction BS-691272
...
729
CLIP, Wire BS-593826
...
748
SCREW (Control Rod Clip) BS-692083
...
792
BRACKET, Fixed Speed BS-691526
...
1054A
TIE, Cable 11" Long BS-5021029SM
...
1084
CONNECTOR, Terminal BS-848341
...
1136
SCREW (Control Bracket) BS-841552
...
1172
SCREW (Control Bracket) BS-841552
