Briggs and Stratton 296447-0011-H5

Model: 296447-0011-H5

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

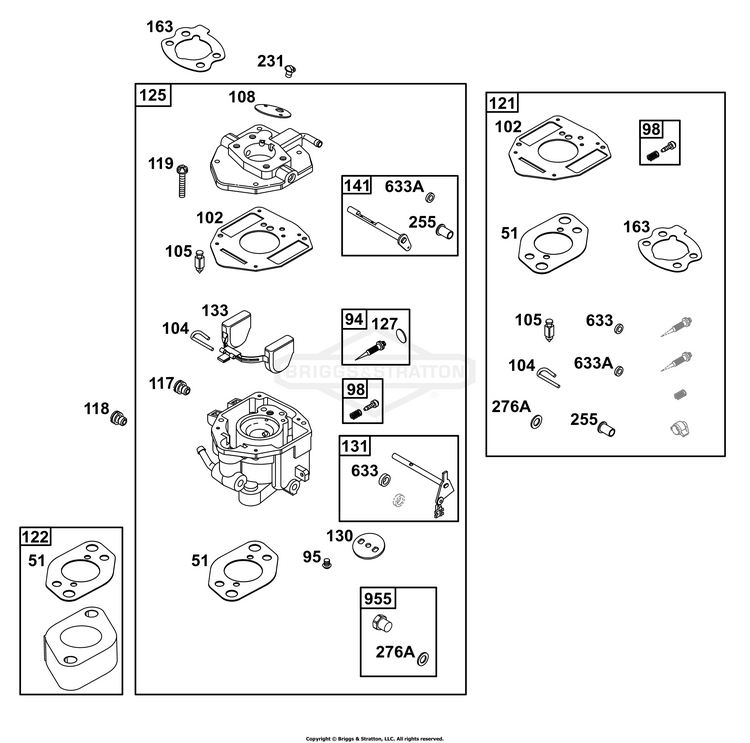

Carburetor Group

...
...
94
KIT, Idle Mixture BS-847026
...
95
SCREW (Throttle Valve) BS-690718
...
98
KIT, Idle Speed BS-808177
...
102
GASKET, Carburetor Body BS-692077
...
104
PIN, Float Hinge BS-690723
...
105
VALVE, Float Needle BS-805620
...
108
VALVE, Choke BS-844989
...
117
JET, Main (Standard) BS-690881
...
118
JET, Main (High Altitude) BS-844990
...
119
SCREW (Upper Carburetor Body To Lower Carburetor Body) BS-690720
...
121
KIT, Carburetor Overhaul (Service Kits can include parts not for this engine.) BS-809021
...
122
SPACER, Carburetor BS-845885
...
125
CARBURETOR BS-844992
...
127
PLUG, Welch BS-847028
...
130
VALVE, Throttle BS-690726
...
131
KIT, Throttle Shaft BS-809007
...
133
FLOAT, Carburetor BS-844546
...
141
KIT, Choke Shaft BS-808398
...
231
SCREW (Choke Valve) BS-690718
...
255
BUSHING, Choke Shaft BS-690721
...
276A
WASHER, Sealing BS-690724
...
633
SEAL, Choke/Throttle Shaft BS-806131
...
633A
SEAL, Choke/Throttle Shaft BS-690722
...
955
PLUG, Carburetor BS-807723
