Briggs and Stratton 296442-0001-H5

Model: 296442-0001-H5

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

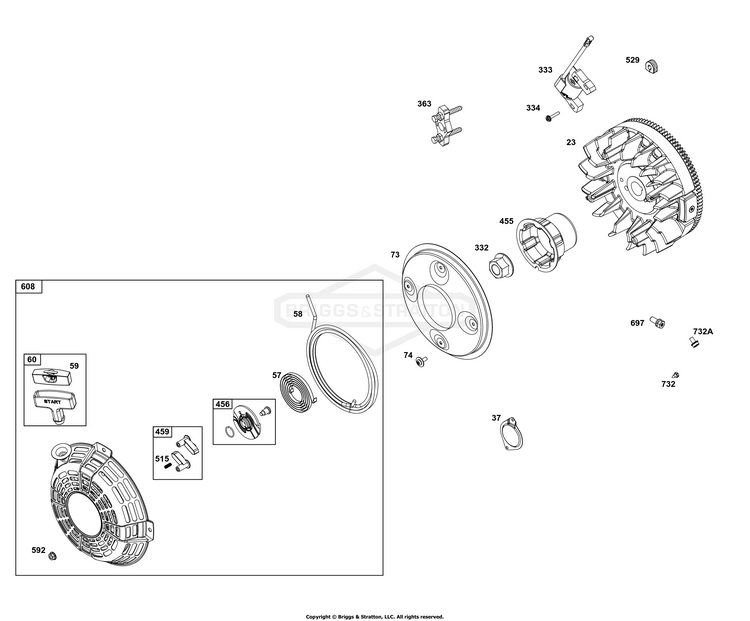

Flywheel, Ignition, and Starter Group

...
...
23
FLYWHEEL BS-842683
...
37
GUARD, Flywheel BS-841309
...
57
SPRING, Rewind Starter BS-692086
...
58
ROPE, Starter BS-66574
...
59
INSERT, Grip BS-809597
...
60
GRIP, Starter Rope BS-808167
...
73
SCREEN, Rotating BS-841662
...
74
SCREW BS-84007750
...
332
NUT (Flywheel) BS-690887
...
333
ARMATURE, MAGNETO BS-84013449
...
334
SCREW (Magneto Armature) BS-692066
...
363
PULLER, Flywheel BS-19203
...
455
CUP, Flywheel BS-841794
...
456
PLATE, Pawl Friction (NLA - Please see Ref 608_ to Service) BS-845219
...
459
PAWL, Ratchet BS-845218
...
515
SPRING, Pawl BS-691528
...
529
GROMMET BS-690744
...
592
NUT (Rewind Starter) BS-690939
...
608
STARTER, Rewind BS-841729
...
697
SCREW (Drive Cap) BS-691902
...
732
SCREW (Starter Drive Cover) BS-690688
...
732A
SCREW (Starter Drive Cover) BS-841233
