Briggs and Stratton 295347-0204-H1

Model: 295347-0204-H1

Back To Assemblies

Save Part Not Listed?
product name

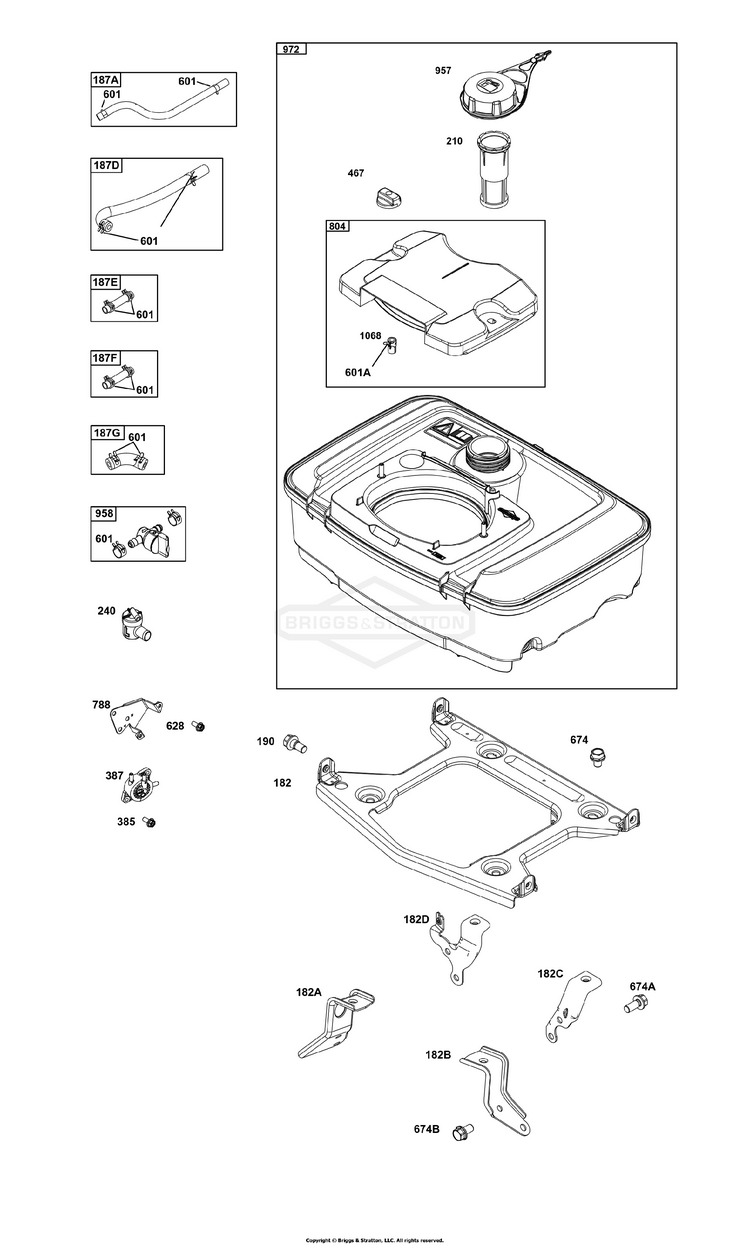

Fuel Supply Group

...
...
182
BRACKET, Fuel Tank BS-846591
...
182A
BRACKET, Fuel Tank BS-841600
...
182B
COVER, Crankcase BS-592294
...
182C
BRACKET, Fuel Tank BS-691525
...
182D
BRACKET, Fuel Tank BS-691520
...
187A
LINE, Fuel BS-846318
...
187D
LINE, Fuel BS-846585
...
187E
LINE, Fuel BS-692106
...
187F
PUMP, Fuel BS-845148
...
187G
LINE, Fuel BS-846567
...
190
SCREW (Fuel Tank) BS-692199
...
210
STRAINER, Fuel BS-691370
...
240
FILTER, Fuel BS-844545
...
385
SCREW (Fuel Pump) BS-807084
...
387
PUMP, Fuel BS-799056
...
467
KNOB, Air Cleaner Cover BS-844618
...
601
CLAMP, Hose BS-691038
...
601A
CLAMP, Hose BS-846483
...
628
SCREW (Fuel Pump Bracket) BS-806660
...
674
SCREW (Fuel Tank Bracket) BS-845964
...
674A
SCREW (Fuel Tank Bracket) BS-692199
...
674B
SCREW (Fuel Tank Bracket) BS-692056
...
788
BRACKET, Fuel Pump BS-691559
...
804
COVER, Air Cleaner BS-844559
...
957
CAP, Fuel Tank BS-846987
...
958
VALVE, Fuel Shut Off BS-593171
...
972
TANK, Fuel BS-844558
...
1068
HOSE/CLAMP ASSEMBLY BS-845143
