Briggs and Stratton 261D05-0001-01

Model: 261D05-0001-01

Back To Assemblies

Save Part Not Listed?
product name

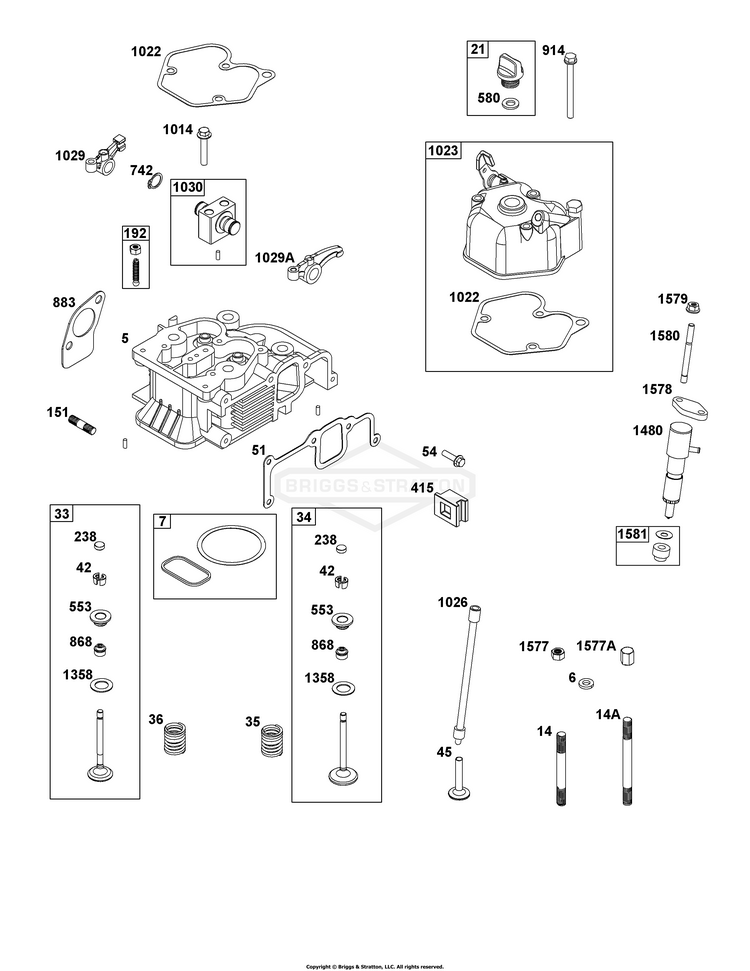

Cylinder Head Group

...
...
5
HEAD, Cylinder BS-84005631
...
6
WASHER (Cylinder Head) BS-84005638
...
7
GASKET, Cylinder Head BS-84005637
...
14
STUD (Cylinder Head) BS-84005635
...
14A
STUD (Cylinder Head) BS-84005636
...
21
CAP, Oil Fill BS-84005527
...
33
VALVE, Exhaust BS-84005609
...
34
VALVE, Intake BS-84005611
...
35
SPRING, Valve (Intake) BS-84005617
...
36
SPRING, Valve (Exhaust) BS-84005617
...
42
KEEPER, Valve BS-84005619
...
45
TAPPET, Valve BS-84005621
...
51
GASKET, Intake BS-84005629
...
54
SCREW (Intake Manifold) BS-84005283
...
151
STUD (Part information located in Exhaust Group.) BS-JUMPTO151
...
192
ADJUSTER, Rocker Arm BS-84005610
...
238
CAP, Valve BS-84005620
...
415
PLUG BS-84005628
...
553
RETAINER, Valve Spring BS-84005618
...
580
SEAL, O-Ring (Oil Fill Cap) BS-84005529
...
742
RETAINER, E Ring BS-84005615
...
868
SEAL, Valve BS-84005608
...
914
SCREW (Rocker Cover) BS-84005537
...
1014
SCREW (Rocker Arm Support) BS-807362
...
1022
GASKET, Rocker Cover BS-84005678
...
1023
COVER, Rocker BS-84005677
...
1026
ROD, Push BS-84005622
...
1029
ARM, Rocker (Exhaust) BS-84005612
...
1029A
ARM, Rocker (Intake) BS-84005613
...
1030
SUPPORT, Rocker Arm BS-84005623
...
1358
SEAT, Valve Spring BS-84005616
...
1480
INJECTOR, Fuel BS-84005627
...
1577
NUT (Cylinder Head) BS-84005639
...
1577A
NUT (Cylinder Head) BS-84005643
...
1578
PLATE, Clamp (Fuel Injector) BS-84005349
...
1579
NUT (Clamp Plate) BS-590692
...
1580
STUD (Clamp Plate) BS-84005625
...
1581
ADJUSTER, Height (Fuel Injector) BS-84005626
