Briggs and Stratton 25V337-0055-F1

Model: 25V337-0055-F1

Back To Assemblies

Save Part Not Listed?
product name

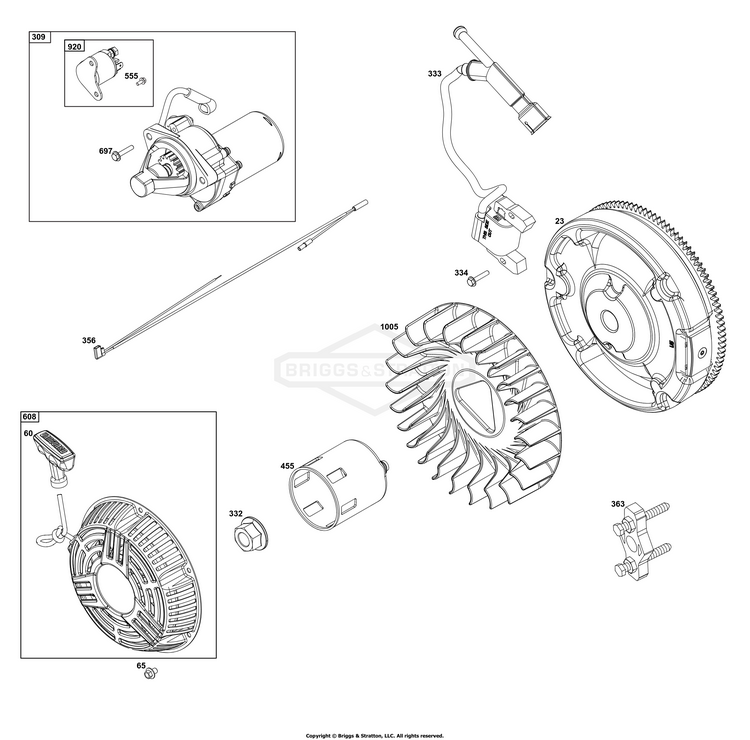

Flywheel, Ignition, and Starter Group

...
...
23
FLYWHEEL BS-84004285
...
60
GRIP, Starter Rope BS-597080
...
65
SCREW (Rewind Starter) BS-590683
...
309
MOTOR, Starter BS-84004169
...
332
NUT (Flywheel) BS-591988
...
333
ARMATURE, Magneto BS-84004162
...
334
SCREW (Magneto Armature) BS-699477
...
356
WIRE, Stop BS-84004209
...
363
PULLER, Flywheel BS-19203
...
455
CUP, Flywheel BS-84004287
...
555
SCREW (Starter Solenoid) BS-597012
...
608
STARTER, Rewind BS-84004174
...
697
SCREW (Starter Motor) (Drive Cap) BS-84004281
...
920
SOLENOID, Starter BS-84007143
...
1005
FAN, Flywheel BS-84004286
