Briggs and Stratton 25V337-0049-F1

Model: 25V337-0049-F1

Back To Assemblies

Save Part Not Listed?
product name

Controls Group

...
...
188
SCREW (Control Bracket) BS-597078
...
202
LINK, Mechanical Governor BS-84004199
...
209
SPRING, Governor (Use Before Date Code 21091500) BS-84004151
...
209
SPRING, Governor (Use After Date Code 21091400) For 3500 RPM or Faster BS-84007291
...
222
BRACKET, CONTROL BS-84007286
...
227
LEVER, Governor Control BS-84004195
...
265A
CLAMP, Casing BS-84004472
...
267A
SCREW (Casing Clamp) BS-84004279
...
271
LEVER, Control BS-84005003
...
281
PANEL, Control BS-84004262
...
286
MODULE, Oil Sensor BS-84002122
...
410A
LINK, Control BS-84004131
...
410B
LINK, Control (Use Before Date Code 21091500) BS-84004149
...
410B
LINK, Control (Use After Date Code 21091400) BS-84007289
...
427
NUT (Control Bracket) BS-84004395
...
485
KNOB, Control BS-84002965
...
500
WASHER (Key Switch) BS-84005150
...
504
SET, Friction Washer BS-84004943
...
505
NUT (Governor Control Lever) BS-590641
...
562
BOLT (Governor Control Lever) BS-597121
...
621
SWITCH, Stop BS-84007989
...
663
SCREW (Control Panel) BS-84004256
...
663A
SCREW (Control Panel) BS-597460
...
664
NUT (Key Switch) BS-84005149
...
668
SPACER BS-84004140
...
789
HARNESS, Wiring BS-84004208
...
892
SWITCH, Key BS-84005148
...
990
SET, Key BS-84005151
...
1012
RETAINER, Link BS-84004145
...
1305
SCREW (Oil Sensor Module) BS-699755
...
1360
SWITCH, Cover BS-84004282
...
1515
NUT (Control Panel) BS-590692
...
1569
KIT, Fixed Speed BS-84005002
...
1571
BRACKET, Governed Idle Spring BS-84004201
...
1572
SCREW (Governed Idle Spring Bracket) BS-597036

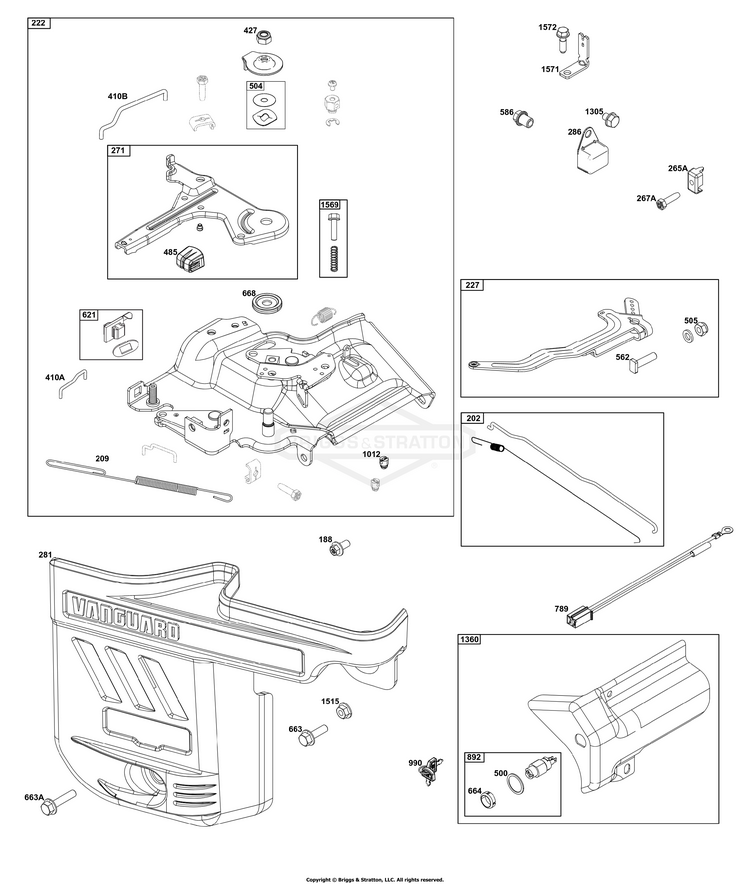

Schematic Image Zoomed
