Briggs and Stratton 25V337-0016-F1

Model: 25V337-0016-F1

Back To Assemblies

Save Part Not Listed?
product name

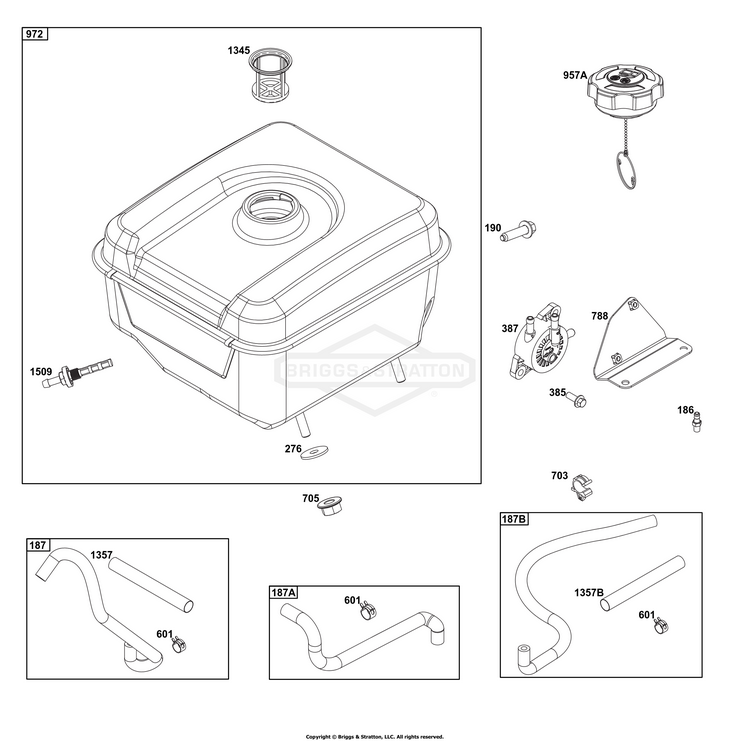

Fuel Supply Group

...
...
186
CONNECTOR, Hose BS-84007494
...
187
LINE, Fuel BS-84004251
...
187A
LINE, Fuel BS-84004193
...
187B
LINE, Fuel BS-84004194
...
190
SCREW (Fuel Tank) BS-84004226
...
276
WASHER, Sealing BS-84004253
...
385
SCREW (Fuel Pump) BS-590703
...
387
PUMP, Fuel BS-597338
...
601
CLAMP, Hose BS-791850
...
703
CLIP BS-84004255
...
705
NUT (Fuel Tank) BS-707919
...
788
BRACKET, Fuel Pump BS-84004473
...
957A
CAP, Fuel Tank BS-84007570
...
972
TANK, Fuel BS-84004212
...
1345
FILTER, Filler Neck BS-792917
...
1357
SLEEVE, Fuel Line BS-590688
...
1357B
SLEEVE, Fuel Line BS-590688
...
1509
OUTLET, Tank BS-797346
Schematic Image Zoomed
