Briggs and Stratton 25V337-0016-F1

Model: 25V337-0016-F1

Back To Assemblies

Save Part Not Listed?
product name

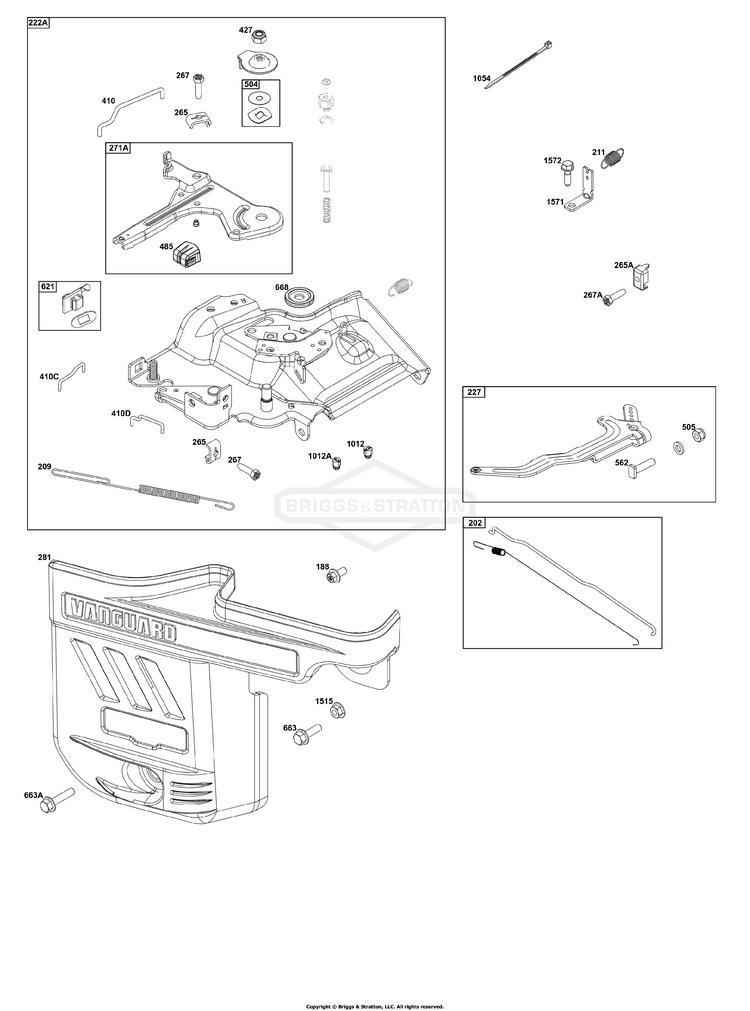

Controls Group

...
...
188
SCREW (Control Bracket) BS-597078
...
202
LINK, Mechanical Governor BS-84004199
...
209
SPRING, Governor BS-84008090
...
211
SPRING, Governor BS-691278
...
222A
BRACKET, Control BS-84007292
...
227
LEVER, Governor Control BS-84004195
...
265
CLAMP, Casing BS-691024
...
265A
CLAMP, Casing BS-84004472
...
267
SCREW (Casing Clamp) BS-597027
...
267A
SCREW (Casing Clamp) BS-84004279
...
271A
LEVER, Control BS-84007532
...
271A
LEVER, Control BS-84007532
...
281
PANEL, Control BS-84004262
...
410
LINK, Control BS-84004137
...
410C
BRACKET, Control BS-84007292
...
410D
LINK, Control BS-84008087
...
427
NUT (Control Bracket) BS-84004395
...
485
KNOB, Control BS-84002965
...
504
SET, Friction Washer BS-84004943
...
504
SET, Friction Washer BS-84004943
...
505
NUT (Governor Control Lever) BS-590641
...
562
BOLT (Governor Control Lever) BS-597121
...
621
SWITCH, Stop BS-84007989
...
663
SCREW (Control Panel) BS-84004256
...
663A
SCREW (Control Panel) BS-597078
...
668
SPACER BS-84004140
...
1012
RETAINER, Link BS-84004145
...
1012A
RETAINER, Link BS-84004144
...
1054
TIE, Cable BS-280275
...
1515
NUT (Control Panel) BS-590692
...
1571
BRACKET, Governed Idle Spring BS-84004201
...
1572
SCREW (Governed Idle Spring Bracket) BS-597036
