Briggs and Stratton 25V332-0069-G1

Model: 25V332-0069-G1

Back To Assemblies

Save Part Not Listed?
product name

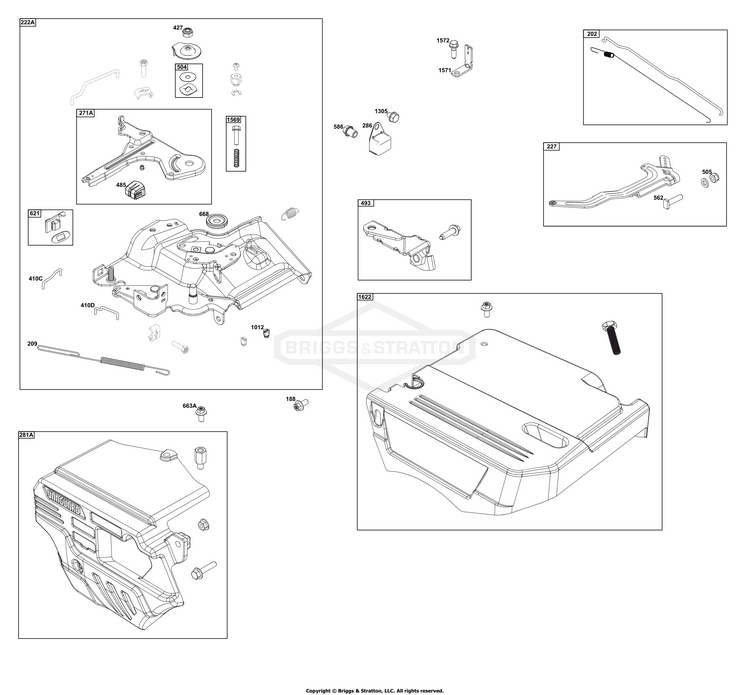

Controls Group

...
...
188
SCREW (Control Bracket) BS-597078
...
202
LINK, Mechanical Governor BS-84004199
...
209
SPRING, Governor BS-84008090
...
222A
BRACKET, Control BS-84007292
...
227
LEVER, Governor Control BS-84004195
...
271A
LEVER, Control BS-84007532
...
281A
PANEL, Control BS-84008540
...
286
MODULE, Oil Sensor BS-84002122
...
410C
BRACKET, Control BS-84007292
...
410D
LINK, Control BS-84008087
...
427
NUT (Control Bracket) BS-84004395
...
485
KNOB, Control BS-84002965
...
493
BRACKET, Mounting BS-84008542
...
504
SET, Friction Washer BS-84004943
...
504
SET, Friction Washer BS-84004943
...
505
NUT (Governor Control Lever) BS-590641
...
562
BOLT (Governor Control Lever) BS-597121
...
586
NUT (Oil Sensor) BS-84004724
...
621
SWITCH, Stop BS-84007989
...
663A
SCREW (Control Panel) BS-597078
...
668
SPACER BS-84004140
...
1012
RETAINER, Link BS-84004145
...
1305
SCREW (Oil Sensor Module) BS-597078
...
1305
SCREW (Oil Sensor Module) BS-699755
...
1569
KIT, Fixed Speed BS-84005002
...
1569
KIT, Fixed Speed BS-84005002
...
1571
BRACKET, Governed Idle Spring BS-84004201
...
1572
SCREW (Governed Idle Spring Bracket) BS-597036
...
1622
COVER, Engine BS-84008541
