Briggs and Stratton 25V332-0053-F1

Model: 25V332-0053-F1

Back To Assemblies

Save Part Not Listed?

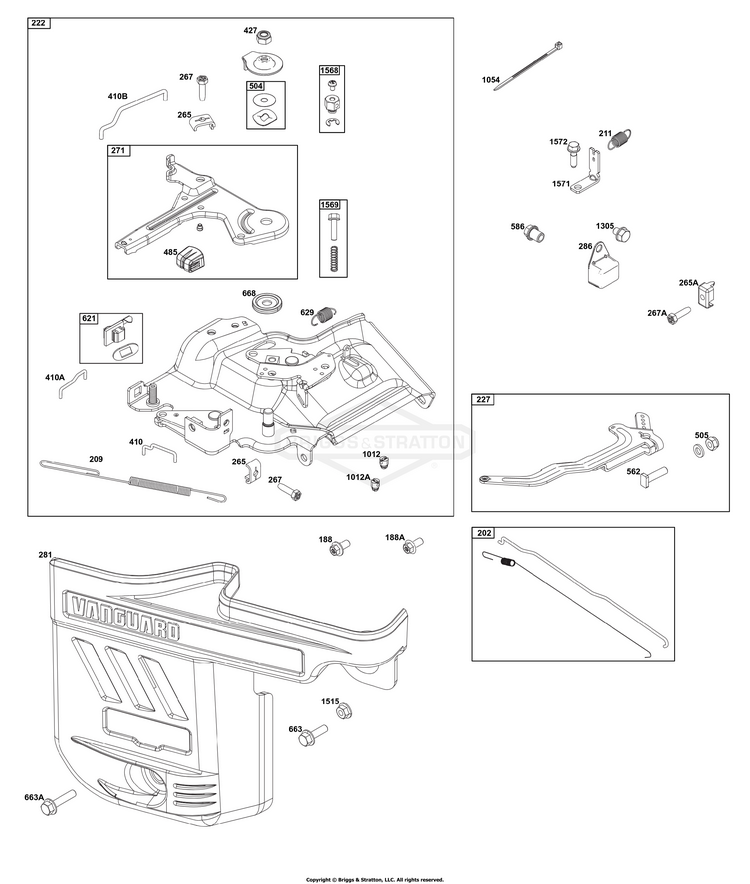

Controls Group

188

SCREW (Control Bracket) BS-590850

188A

SCREW (Control Bracket) BS-597078

202

LINK, Mechanical Governor BS-84004199

209

SPRING, Governor (Use Before Date Code 21091500) BS-84004151

209

SPRING, Governor (Use After Date Code 21091400) For 3500 RPM or Faster BS-84007291

211

SPRING, Governor BS-691278

222

BRACKET, Control For 3500 RPM or Faster BS-84007292

227

LEVER, Governor Control BS-84004195

265

CLAMP, Casing BS-691024

265A

CLAMP, Casing BS-84004472

267

SCREW (Casing Clamp) BS-597027

267A

SCREW (Casing Clamp) BS-84004279

271

LEVER, Control BS-84005003

281

PANEL, Control BS-84004262

286

MODULE, Oil Sensor BS-84002122

410

LINK, Control BS-84004137

410A

LINK, Control BS-84004131

410B

LINK, Control (Use Before Date Code 21091500) BS-84004149

410B

LINK, Control (Use After Date Code 21091400) BS-84007289

427

NUT (Control Bracket) BS-84004395

485

KNOB, Control BS-84002965

504

SET, Friction Washer BS-84004943

505

NUT (Governor Control Lever) BS-590641

562

BOLT (Governor Control Lever) BS-597121

621

SWITCH, Stop BS-84007989

629

SPRING, Throttle Return BS-84004146

663

SCREW (Control Panel) BS-84004256

663A

SCREW (Control Panel) BS-597460

668

SPACER BS-84004140

1012

RETAINER, Link BS-84004145

1012A

RETAINER, Link BS-84004144

1054

TIE, Cable BS-280275

1305

SCREW (Oil Sensor Module) BS-590850

1515

NUT (Control Panel) BS-590692

1568

RETAINER, Wire BS-84005001

1569

KIT, Fixed Speed BS-84005002

1571

BRACKET, Governed Idle Spring BS-84004201

1572

SCREW (Governed Idle Spring Bracket) BS-597036
