Briggs and Stratton 25T237-0464-H7

Model: 25T237-0464-H7

Back To Assemblies

Save Part Not Listed?
product name

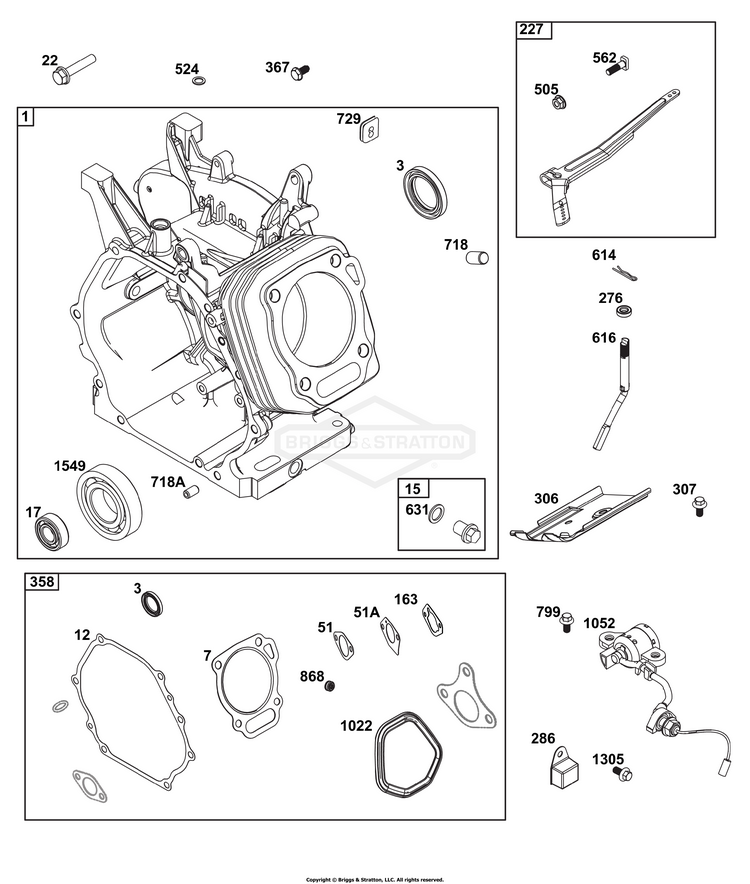

Cylinder Group

...
...
1
CYLINDER ASSEMBLY BS-799967
...
3
SEAL, Oil (Magneto Side) BS-797766
...
15
PLUG, Oil Drain BS-797793
...
17
BEARING, Ball (Cylinder) BS-797764
...
276
WASHER, Sealing BS-797806
...
306
SHIELD, Cylinder BS-797749
...
307
SCREW (Cylinder Shield) BS-798618
...
358
GASKET SET, ENGINE (Service Kits can include parts not for this engine.) BS-84004406
...
614
PIN, Cotter BS-797229
...
616
CRANK, Governor BS-797805
...
631
WASHER BS-797794
...
718
PIN, Locating BS-797792
...
718A
PIN, Locating BS-797761
