Briggs and Stratton 25T237-0361-H7

Model: 25T237-0361-H7

Back To Assemblies

Save Part Not Listed?
product name

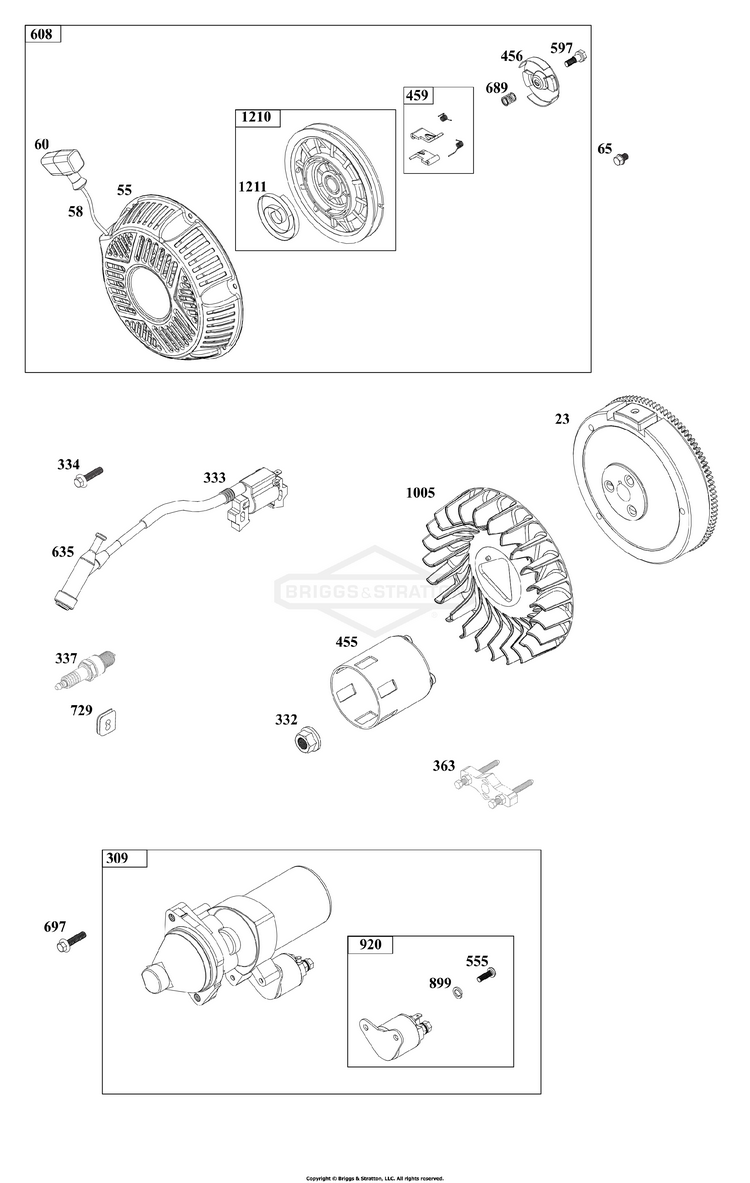

Flywheel, Ignition, and Starter Group

...
...
23
FLYWHEEL BS-591095
...
55
HOUSING, Rewind Starter BS-799974
...
58
ROPE, Starter (Cut To Required Length) BS-693389
...
60
GRIP, Starter Rope BS-691915
...
65
SCREW (Rewind Starter) BS-797654
...
309
MOTOR, Starter BS-797775
...
332
NUT (Flywheel) BS-797811
...
333
ARMATURE, Magneto BS-797769
...
334
SCREW (Magneto Armature) BS-590644
...
455
CUP, Flywheel BS-797746
...
456
PLATE, Pawl Friction BS-799973
...
459
PAWL, Ratchet BS-799976
...
555
SCREW (Starter Solenoid) BS-799532
...
597
SCREW (Pawl Friction Plate) BS-799972
...
608
STARTER, Rewind BS-797747
...
689
SPRING, Friction BS-799669
...
697
SCREW (Starter Motor) (Drive Cap) BS-797776
...
729
CLIP, Wire BS-797750
...
899
WASHER (Starter Solenoid) BS-799642
...
920
SOLENOID, Starter BS-799481
...
1005
FAN, Flywheel BS-797748
...
1210
PULLEY/SPRING ASSEMBLY (Pulley) BS-799975
...
1211
PULLEY/SPRING ASSEMBLY (Spring) BS-799975
