Briggs and Stratton 25N132-0019-F1

Model: 25N132-0019-F1

Back To Assemblies

Save Part Not Listed?
product name

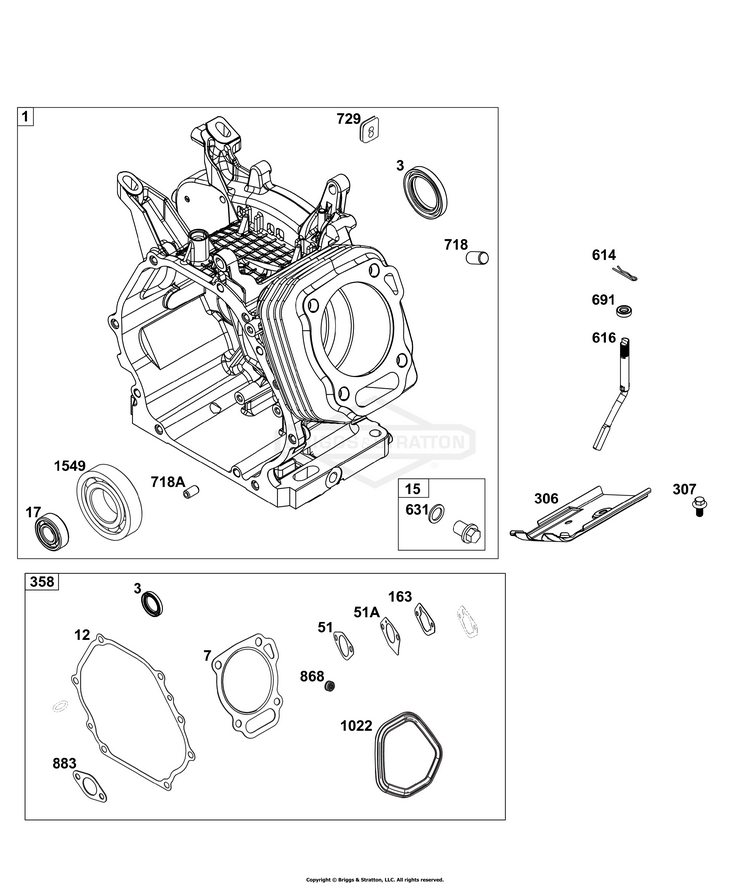

Cylinder Group

...
...
1
CYLINDER ASSEMBLY BS-590381
...
3
SEAL, Oil BS-797766
...
17
BEARING, Ball (Cylinder) BS-797764
...
306
SHIELD, Cylinder BS-797749
...
307
SCREW (Cylinder Shield) BS-798618
...
358
GASKET SET, ENGINE (Service Kits can include parts not for this engine.) BS-84012832
...
614
PIN, Cotter BS-797229
...
616
CRANK, Governor BS-797805
...
691
WASHER, Sealing (Governor Crank) BS-797806
...
718
PIN, Locating BS-797792
...
718A
PIN, Locating BS-797761
