Briggs and Stratton 25M137-1214-F1

Model: 25M137-1214-F1

Back To Assemblies

Save Part Not Listed?
product name

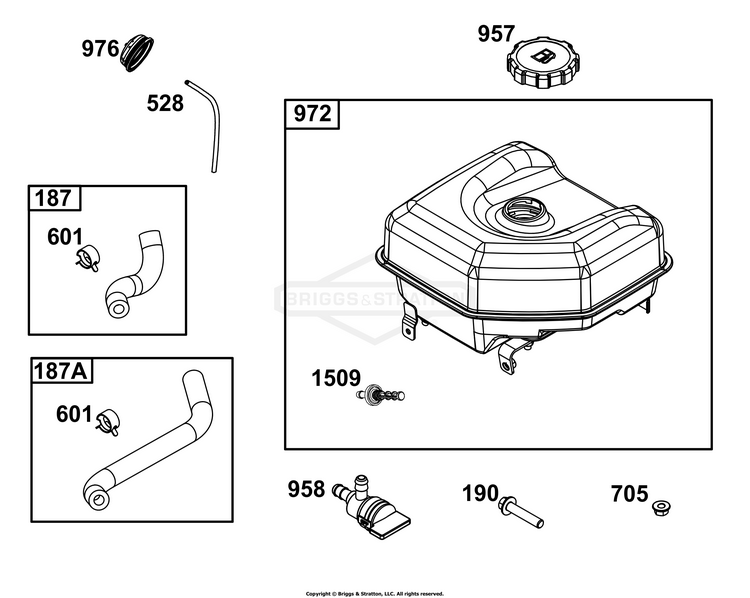

Fuel Supply Group

...
...
187
LINE, Fuel BS-799784
...
187A
LINE, Fuel BS-799785
...
190
SCREW (Fuel Tank) BS-590997
...
528
HOSE, Primer BS-799918
...
601
CLAMP, Hose BS-791850
...
705
NUT (Fuel Tank) BS-690939
...
957
CAP, Fuel Tank BS-794641
...
958
VALVE, Fuel Shutoff BS-698180
...
972
TANK, Fuel BS-799782
...
976
PRIMER, Carburetor BS-793382
...
1509
OUTLET, Tank BS-797346
