Briggs and Stratton 245437-0802-E1

Model: 245437-0802-E1

Back To Assemblies

Save Part Not Listed?
product name

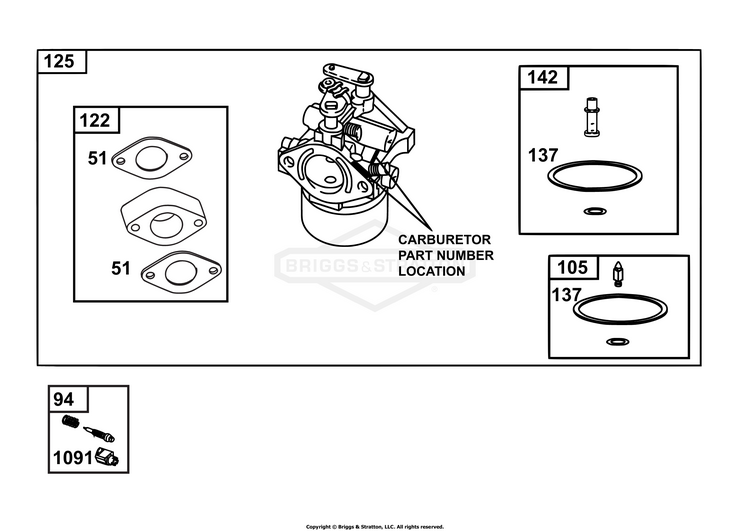

Carburetor Group

...
...
51
GASKET, Intake (Part information located in Cylinder Head Group.) BS-710559
...
94
KIT, Idle Mixture BS-498836
...
105
VALVE, Float Needle BS-712001
...
122
SPACER, Carburetor BS-715377
...
122
SPACER, Carburetor BS-715377
...
125
CARBURETOR BS-715783
...
137
GASKET, Float Bowl BS-281165S
...
142
NOZZLE, Carburetor BS-712002
...
1091
CAP, Limiter BS-691333
