Briggs and Stratton 245437-0802-E1

Model: 245437-0802-E1

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

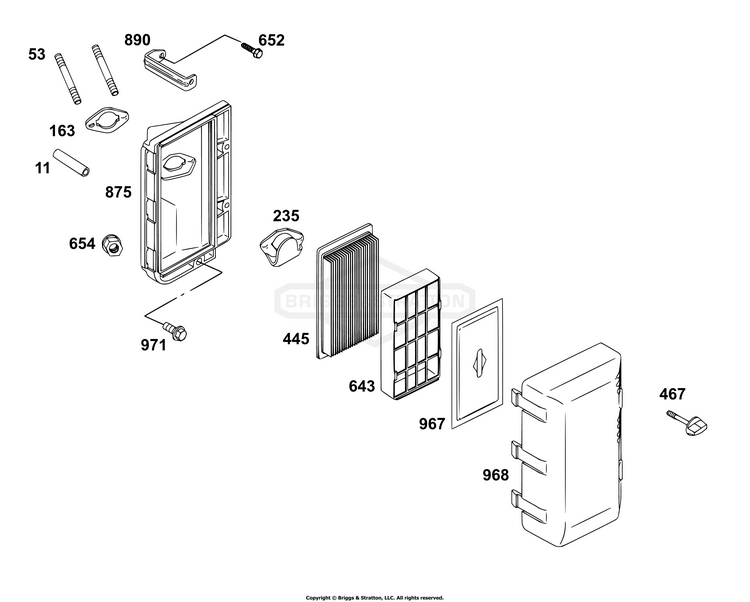

Air Cleaner Group

...
...
11
TUBE, Breather BS-710115
...
53
STUD BS-710556
...
163
GASKET, Air Cleaner BS-710557
...
235
SHIELD, Fuel Spray BS-710553
...
445
FILTER, A/C Cartridge BS-710266
...
467
KNOB, Air Cleaner Cover BS-710113
...
643
RETAINER, Air Filter BS-710228
...
652
SCREW (Support Bracket) BS-710248
...
654
LOCKNUT BS-710068
...
875
BASE, Air Cleaner BS-710551
...
890
BRACKET, Support BS-710554
...
967
FILTER, Pre Cleaner BS-710268
...
968
COVER, Air Cleaner BS-710552
...
971
SCREW (Air Cleaner Base To Carburetor/Throttle Body) BS-710234
