Briggs and Stratton 245437-0802-E1

Model: 245437-0802-E1

Back To Assemblies

Save Part Not Listed?
product name

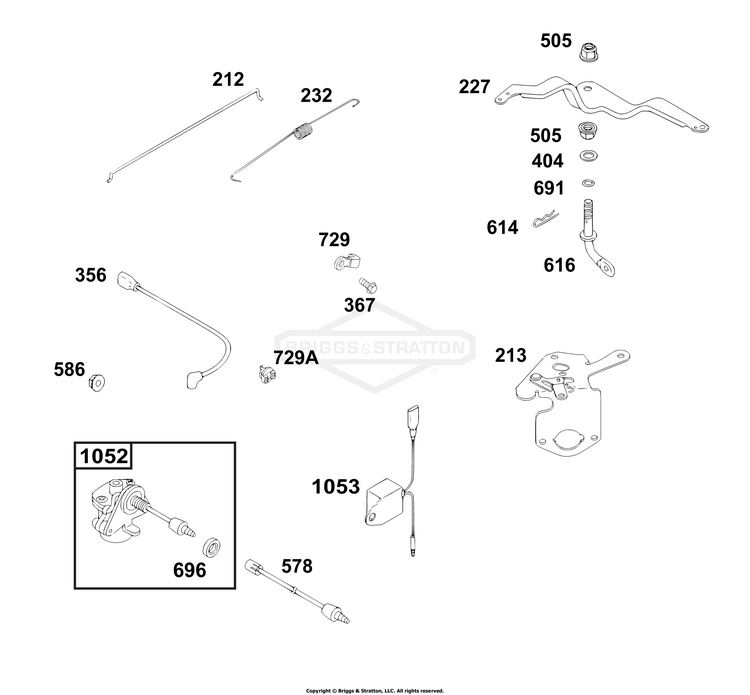

Controls Group

...
...
212
LINK, Throttle BS-710562
...
213
BRACKET, Choke Control BS-715347
...
227
LEVER, Governor Control BS-710561
...
232
SPRING/LINK, Governor BS-710563
...
367
SCREW (Wire Clip) BS-710023
...
505
NUT (Governor Control Lever) BS-710059
...
578
WIRE ASSEMBLY BS-710308
...
586
LOCKNUT (Oil Sensor) BS-710090
...
691
SEAL, Governor Shaft (Part information located in Crankcase Cover/Sump Group.) BS-710055
...
696
GASKET, Oil Guard BS-710091
...
729
CLIP, Wire BS-710083
...
729A
CLIP, Wire BS-710046
...
1053
MODULE, Oil Guard (Part information located in Lubrication Group.) BS-JUMPTO1053
