Briggs and Stratton 243431-3135-08

Model: 243431-3135-08

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

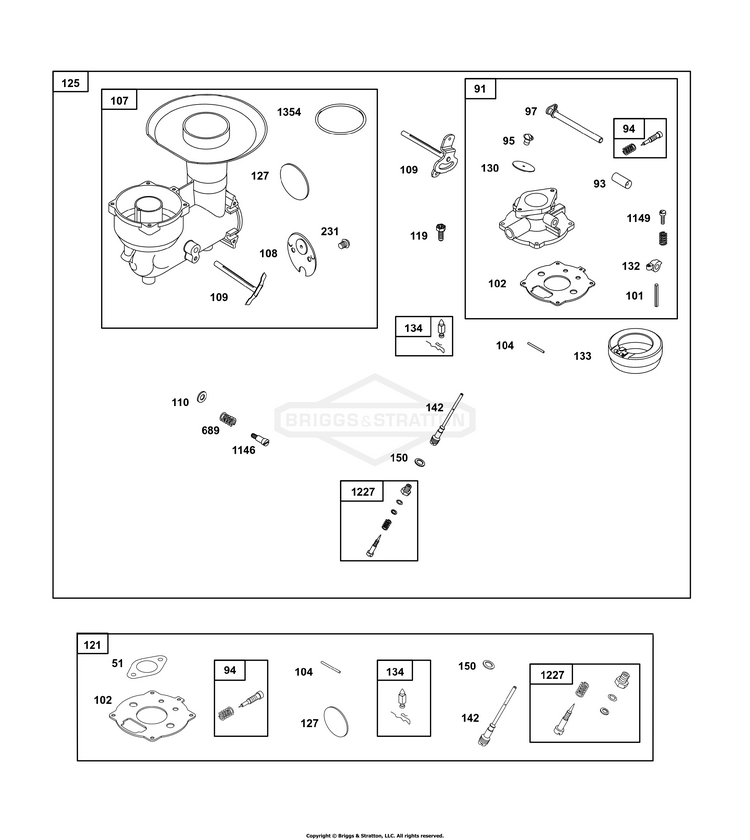

Carburetor Group

...
...
91
BODY, Upper Carburetor BS-391034
...
93
BUSHING, Throttle Shaft BS-691769
...
94
VALVE, Idle Mixture BS-292681
...
95
SCREW (Throttle Valve) BS-691437
...
97
SHAFT, Throttle BS-691944
...
101
PIN, Shaft BS-691616
...
102
GASKET, Carburetor Body BS-692215
...
104
PIN, Float Hinge BS-691775
...
107
BODY, Lower Carburetor BS-391069
...
108
VALVE, Choke BS-690621
...
109
SHAFT, Choke BS-691353
...
110
WASHER (Choke Shaft) BS-691186
...
119
SCREW (Upper Carburetor Body To Lower Carburetor Body) BS-691090
...
121
KIT, Carburetor Overhaul BS-394989
...
125
CARBURETOR BS-391073
...
127
PLUG, Welch BS-690627
...
130
VALVE, Throttle BS-691727
...
132
STOP, Throttle BS-691708
...
133
FLOAT, Carburetor BS-692265
...
134
KIT, Needle/Seat BS-394682
...
142
NOZZLE, Carburetor BS-691966
...
150
GASKET, Nozzle BS-691610
...
231
SCREW (Choke Valve) BS-691437
...
689
SPRING, Friction BS-691590
...
1146
SCREW (Choke Shaft) BS-691587
...
1149
SCREW (Throttle Shaft) BS-691615
...
1227
VALVE, High Speed BS-99525S
...
1354
SEAL, O-Ring (Lower Carburetor Body) BS-691929
