product name

Briggs and Stratton 21R877-0056-H5

Model: 21R877-0056-H5

Back To Assemblies

Save Part Not Listed?
product name

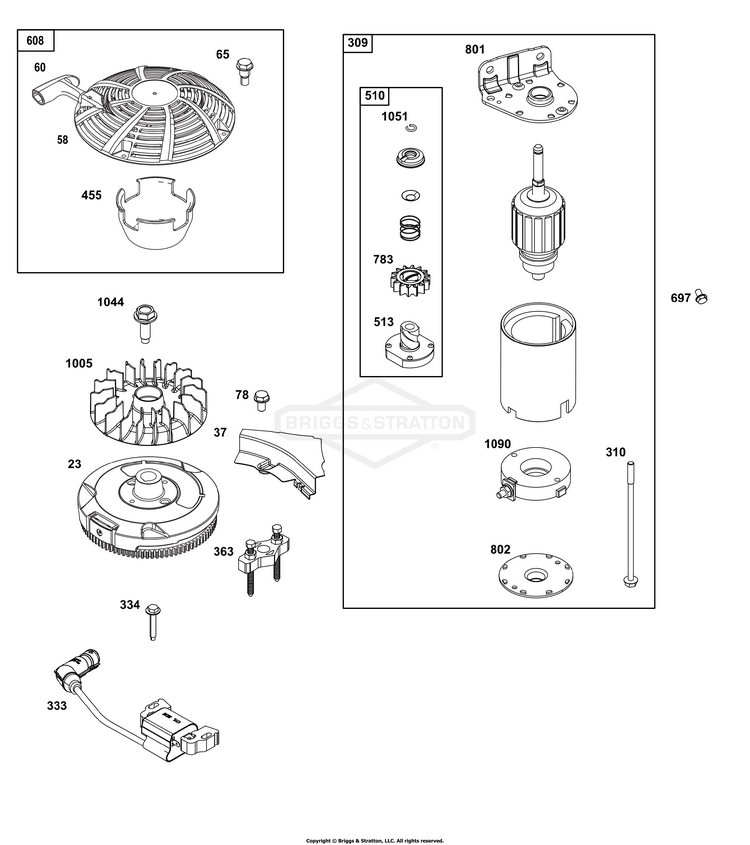

Flywheel, Ignition, and Starter Group

...
...
23
FLYWHEEL BS-591761
...
37
GUARD, Flywheel BS-697352
...
58
ROPE, Starter BS-697316
...
60
GRIP, Starter Rope BS-281434S
...
65
SCREW (Rewind Starter) BS-690940
...
78
SCREW (Flywheel Guard) BS-691693
...
309
MOTOR, Starter BS-593934
...
310
SCREW (Starter Motor) BS-690323
...
333
ARMATURE, Magneto BS-595304
...
334
SCREW (Magneto Armature) BS-691061
...
363
PULLER, Flywheel BS-19203
...
455
CUP, Flywheel BS-796615
...
510
MOTOR, Starter BS-593934
...
513
CLUTCH, Drive BS-692024
...
608
STARTER, REWIND BS-84013160
...
697
SCREW (Drive Cap) BS-791680
...
783
GEAR, Pinion BS-593935
...
801
CAP, Drive BS-691283
...
802
CAP, End BS-691286
...
1005
FAN, Flywheel BS-796200
...
1044
SCREW (Flywheel) BS-698139
...
1051
RING, Retaining BS-691265
...
1090
RETAINER, Brush BS-691293
