Briggs and Stratton 21R702-0020-H5

Model: 21R702-0020-H5

Back To Assemblies

Save Part Not Listed?

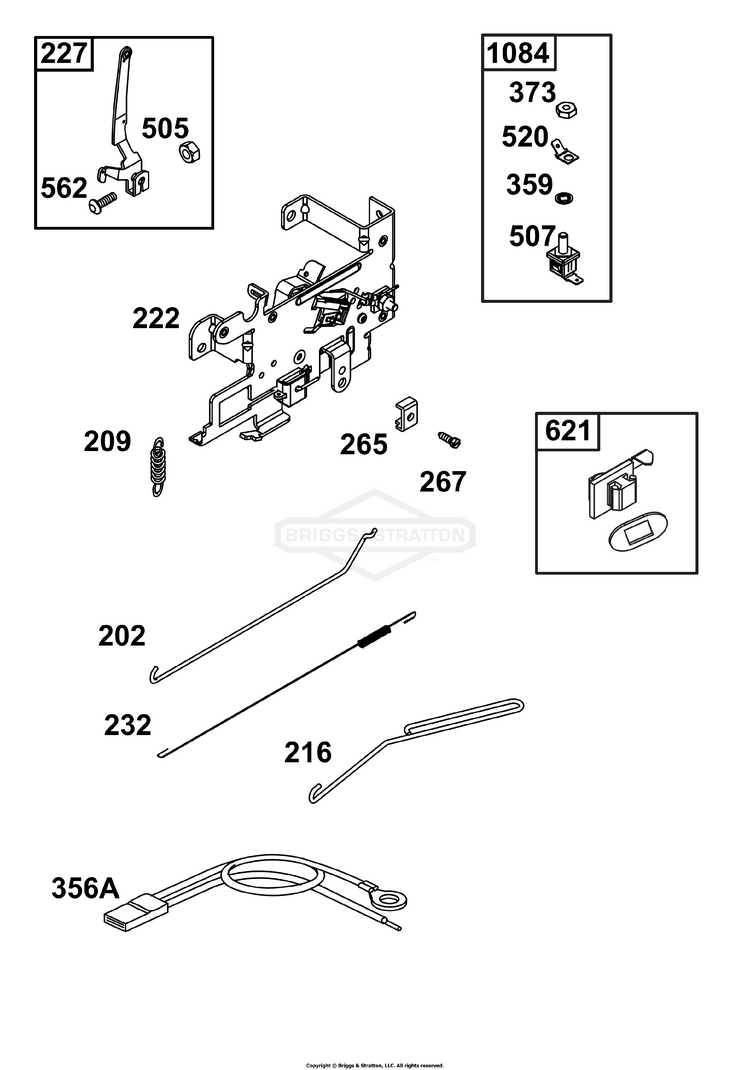

product name

Controls Group

...
...
202
LINK, Mechanical Governor BS-691841
...
209
SPRING, Governor BS-792813
...
216
LINK, Choke BS-691840
...
222
BRACKET, Control BS-597461
...
227
LEVER, Governor Control BS-691374
...
232
SPRING, Governor Link BS-691842
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-794904
...
356A
WIRE, Stop #N/A BS-398808
...
359
WASHER (Ground Terminal) BS-691077
...
373
NUT, Hex #8-32 (Ground Terminal) BS-703460
...
505
NUT (Governor Control Lever) BS-691251
...
507
INSULATOR BS-691972
...
520
TERMINAL, Ground BS-691084
...
562
BOLT (Governor Control Lever) BS-691119
...
621
SWITCH, Stop BS-84007989
...
1084
CONNECTOR, Terminal BS-848341
