Briggs and Stratton 21R702-0020-H5

Model: 21R702-0020-H5

Back To Assemblies

Save Part Not Listed?
product name

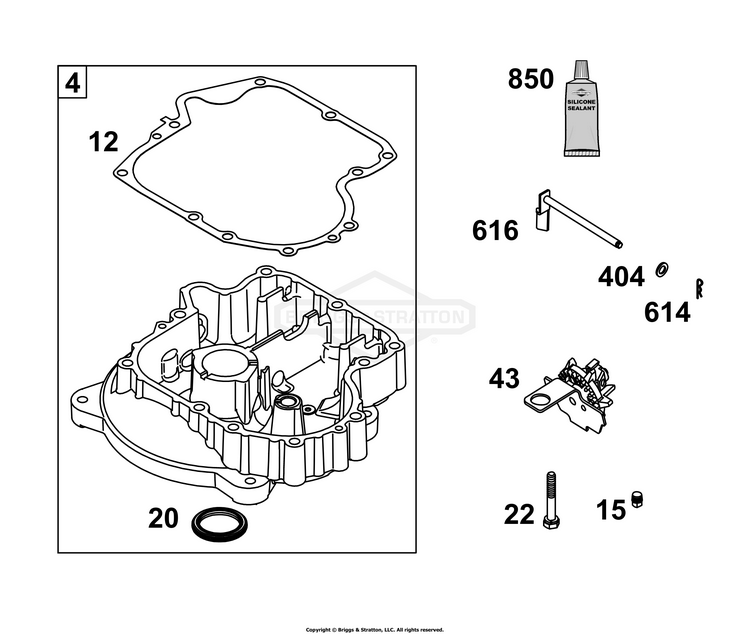

Crankcase Cover/Sump Group

...
...
4
SUMP, Engine BS-697106
...
12
GASKET, Crankcase BS-697110
...
15
PLUG, Oil Drain BS-690946
...
20
SEAL, Oil (PTO Side) BS-795387
...
22
SCREW (Crankcase Cover/Sump) BS-692125
...
404
WASHER (Governor Crank) BS-691691
...
614
PIN, Cotter BS-691620
...
616
CRANK, Governor BS-692012
...
850
SEALANT, Liquid BS-100106
