Briggs and Stratton 21R507-0014-H5

Model: 21R507-0014-H5

Back To Assemblies

Save Part Not Listed?
product name

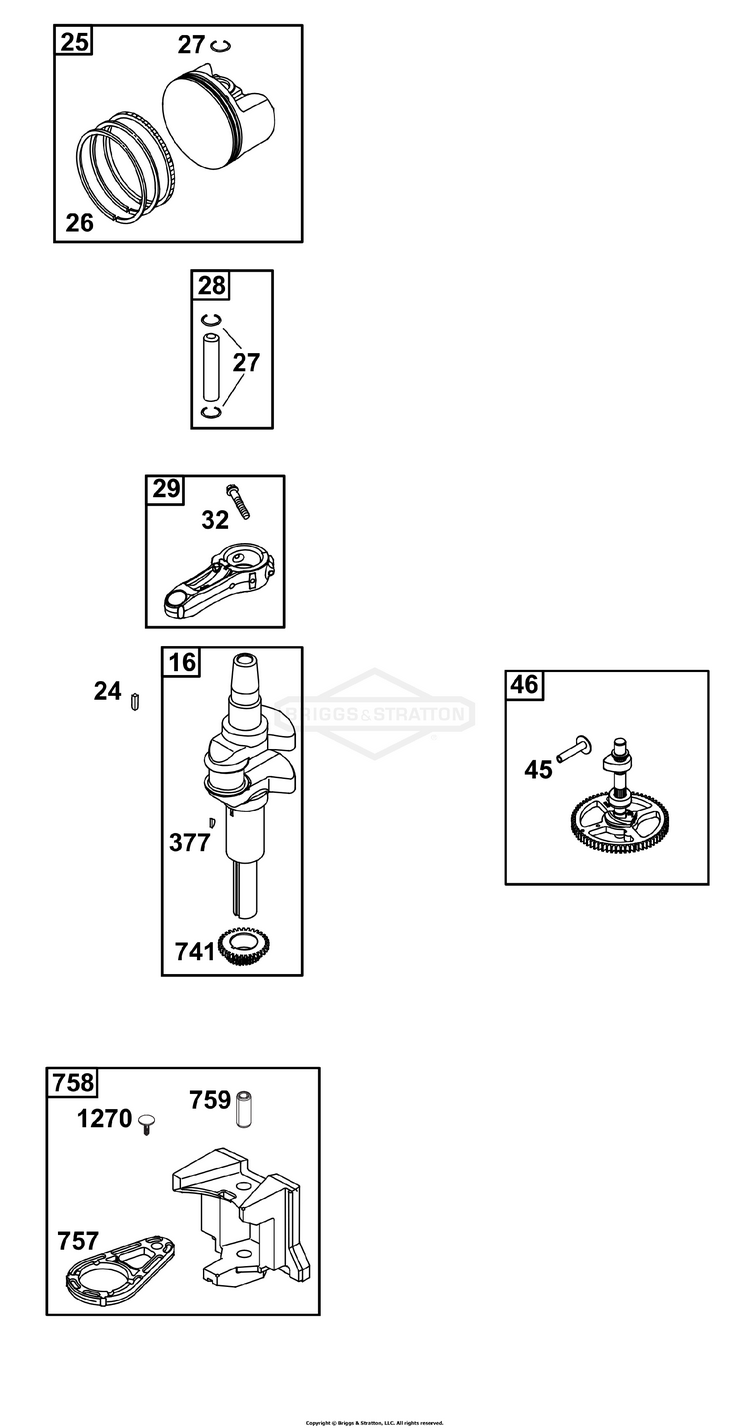

Crankshaft Group

...
...
16
CRANKSHAFT BS-593417
...
24
KEY, Flywheel BS-591757
...
25
PISTON ASSEMBLY BS-597230
...
25
PISTON ASSEMBLY-020 (.020" Oversize) BS-797010
...
26
SET, Ring BS-797011
...
26
SET, Ring (.020 Oversize) BS-792643
...
27
LOCK, Piston Pin BS-698469
...
28
PIN, PISTON BS-84002062
...
29
ROD, Connecting BS-791633
...
32
SCREW (Connecting Rod) BS-791118
...
46
CAMSHAFT BS-84005207
...
377
KEY, Woodruff BS-691639
...
741
GEAR, Timing BS-697128
...
757
LINK, Counterweight BS-793242
...
758
COUNTERWEIGHT BS-593418
...
759
PIN, Counterweight BS-697392
...
1270
PLUG, AVS Counterweight BS-793243
