Briggs and Stratton 21R507-0014-H5

Model: 21R507-0014-H5

Back To Assemblies

Save Part Not Listed?
product name

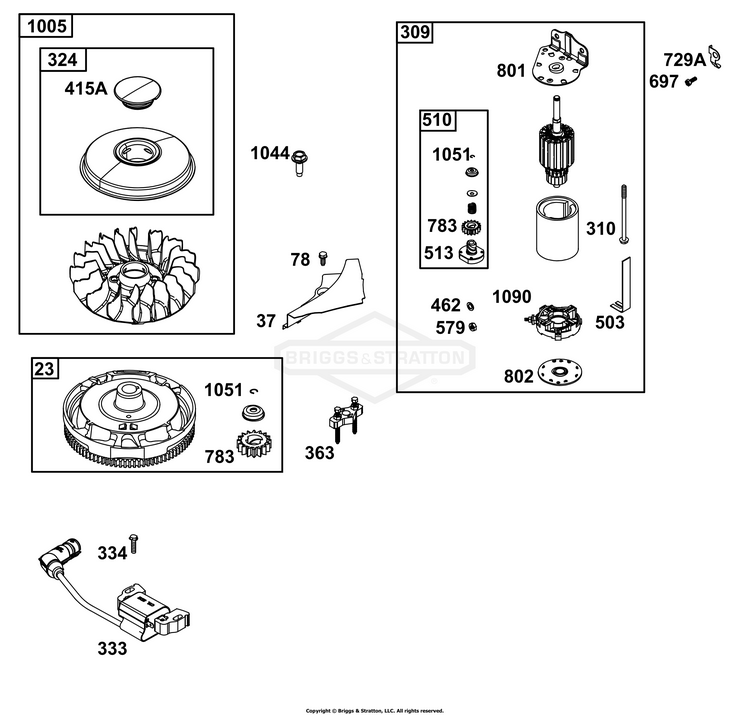

Flywheel, Ignition, and Starter Group

...
...
23
FLYWHEEL BS-591759
...
37
GUARD, Flywheel BS-697352
...
78
SCREW (Flywheel Guard) BS-691693
...
309
MOTOR, Starter BS-593934
...
310
SCREW (Starter Motor) BS-690323
...
324
SCREEN/CUP ASSEMBLY BS-593933
...
333
ARMATURE, Magneto BS-595304
...
334
SCREW (Magneto Armature) BS-691061
...
363
PULLER, Flywheel BS-19203
...
415A
COVER, Flywheel BS-794129
...
462
WASHER (Starter Cable) BS-691261
...
503
STRAP, Starter BS-691532
...
510
MOTOR, Starter BS-593934
...
513
CLUTCH, Drive BS-692024
...
579
NUT (Starter Cable) BS-691029
...
697
SCREW (Starter Motor) (Drive Cap) BS-791680
...
729A
CLIP, Wire BS-691224
...
783
GEAR, Pinion BS-593935
...
801
CAP, Drive BS-691283
...
802
CAP, End BS-691286
...
1005
FAN, Flywheel BS-796200
...
1044
SCREW (Flywheel) BS-698139
...
1051
RING, Retaining BS-691265
...
1090
RETAINER, Brush BS-691293
