Briggs and Stratton 21R502-0002-H5

Model: 21R502-0002-H5

Back To Assemblies

Save Part Not Listed?
product name

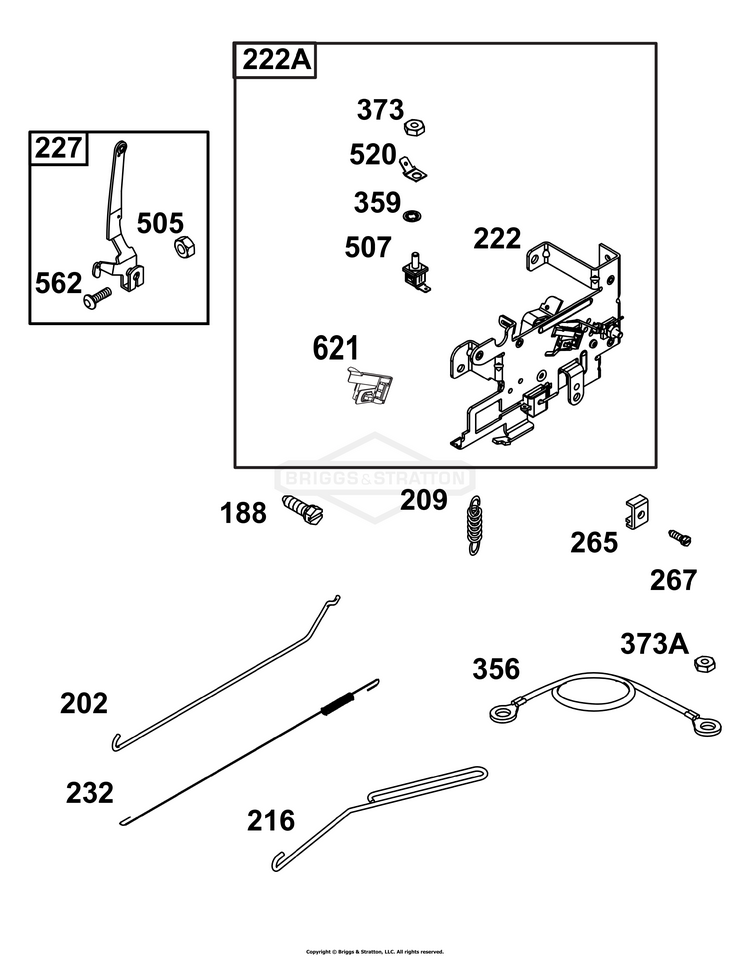

Controls Group

...
...
188
SCREW (Control Bracket) BS-691693
...
202
LINK, Mechanical Governor BS-691841
...
209
SPRING, Governor BS-796260
...
209
SPRING, Governor BS-792813
...
216
LINK, Choke BS-691840
...
222
BRACKET, Control BS-597325
...
222A
BRACKET, Control BS-597461
...
227
LEVER, Governor Control BS-691374
...
232
SPRING, Governor Link BS-691842
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-794904
...
356
WIRE, Stop BS-398808
...
359
WASHER (Ground Terminal) BS-691077
...
373
NUT (Ground Terminal) BS-691612
...
373A
NUT, Hex #8-32 (Ground Terminal) BS-703460
...
505
NUT (Governor Control Lever) BS-691251
...
507
INSULATOR BS-691972
...
520
TERMINAL, Ground BS-691084
...
562
BOLT (Governor Control Lever) BS-691119
...
621
SWITCH, Stop BS-84007989
