Briggs and Stratton 21R502-0002-H5

Model: 21R502-0002-H5

Back To Assemblies

Save Part Not Listed?
product name

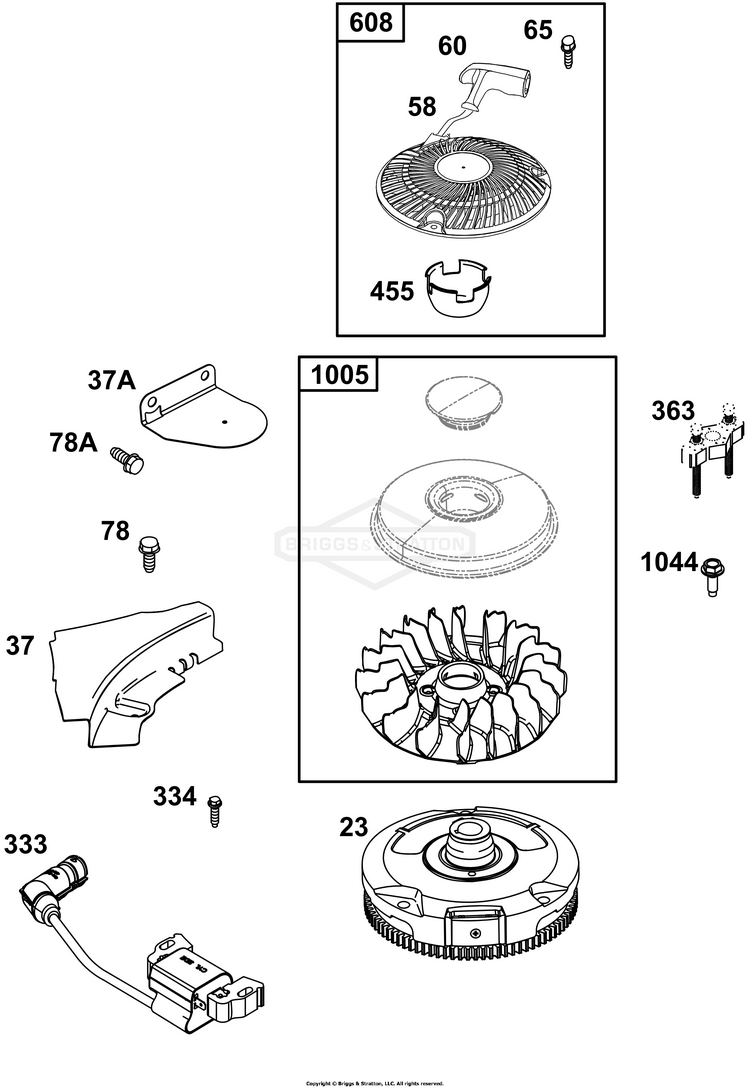

Flywheel, Ignition, and Starter Group

...
...
23
FLYWHEEL BS-591950
...
37
GUARD, Flywheel BS-697352
...
37A
GUARD, Flywheel BS-697626
...
58
ROPE, Starter BS-697316
...
60
GRIP, Starter Rope BS-281434S
...
65
SCREW (Rewind Starter) BS-690940
...
78
SCREW (Flywheel Guard) BS-691693
...
78A
SCREW (Flywheel Guard) BS-690364
...
333
ARMATURE, Magneto BS-595304
...
334
SCREW (Magneto Armature) BS-691061
...
363
PULLER, Flywheel BS-19203
...
455
CUP, Flywheel BS-796615
...
608
STARTER, REWIND BS-84013160
...
1005
FAN, Flywheel BS-796200
...
1044
SCREW (Flywheel) BS-698139
