Briggs and Stratton 21R502-0002-H5

Model: 21R502-0002-H5

Back To Assemblies

Save Part Not Listed?
product name

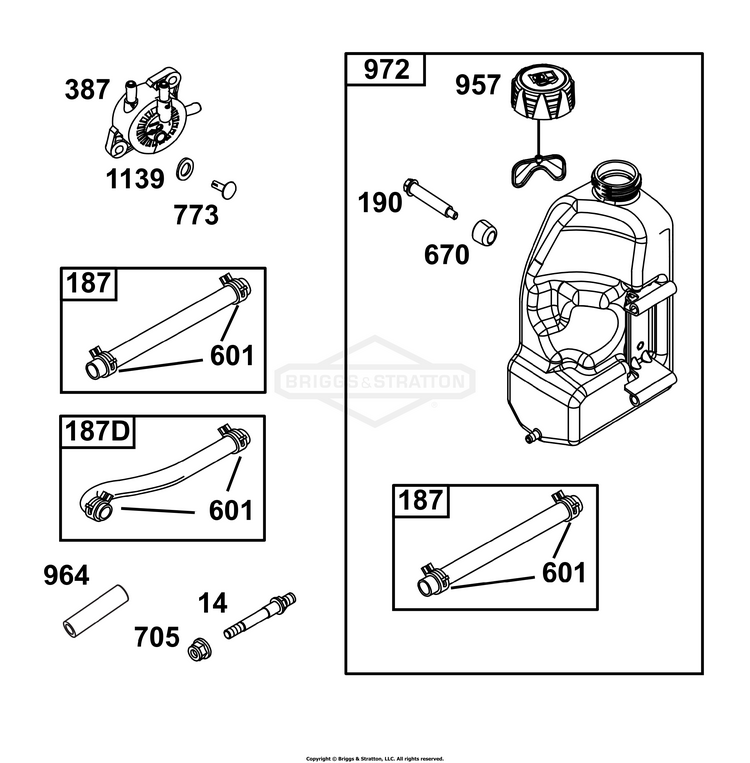

Fuel Supply Group

...
...
187
LINE, Fuel BS-791766
...
187D
LINE, Fuel BS-791744
...
190
SCREW (Fuel Tank) BS-796174
...
387
PUMP, Fuel BS-597338
...
601
CLAMP, Hose BS-791850
...
670
SPACER, Fuel Tank BS-796175
...
705
NUT (Fuel Tank) BS-790561
...
773
RETAINER BS-796448
...
957
CAP, Fuel Tank BS-795027
...
964
CAP, Connector BS-597560
...
972
TANK, Fuel BS-792168
...
1139
WASHER (Fuel Pump Bracket) BS-796449
