Briggs and Stratton 19V332-0153-F1

Model: 19V332-0153-F1

Back To Assemblies

Save Part Not Listed?
product name

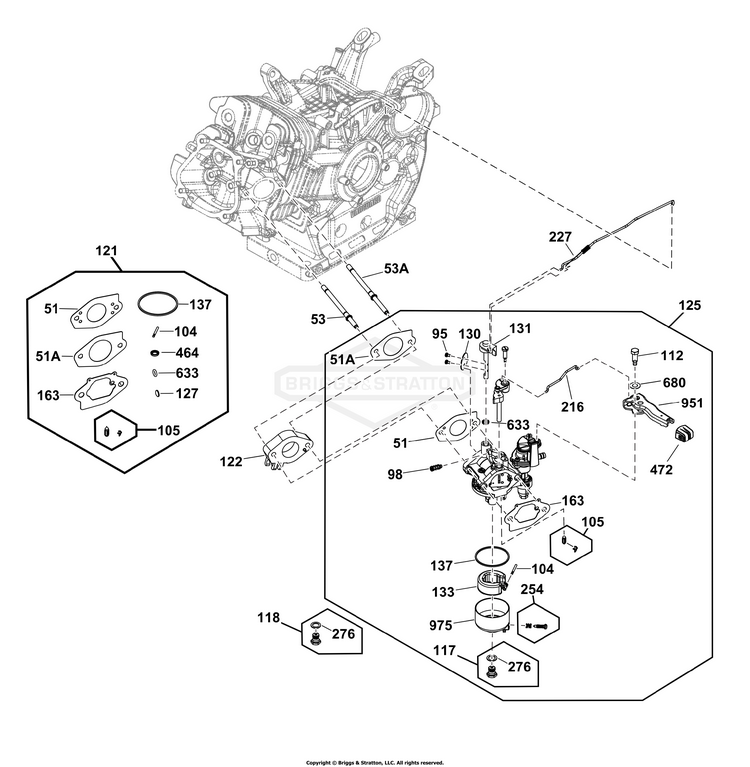

Carburetor Group

...
...
53
STUD (Carburetor) (Short) BS-84004315
...
53A
STUD (Carburetor) (Long) BS-84004311
...
95
SCREW (Throttle Valve) BS-797161
...
98
KIT, Idle Speed BS-797156
...
104
PIN, Float Hinge BS-597533
...
105
VALVE, Float Needle BS-84004840
...
112
SCREW (Choke Lever) BS-84003640
...
117
JET, Main (Standard) BS-84012917
...
118
JET, Main (High Altitude) BS-84012927
...
121
KIT, Carburetor Overhaul (Service Kits can include parts not for this engine.) BS-84013147
...
122
SPACER, Carburetor BS-84004306
...
125
CARBURETOR BS-84012915
...
127
PLUG, Welch BS-84004841
...
130
VALVE, Throttle BS-84004397
...
131
SEAL, Choke/Throttle Shaft BS-84004396
...
133
FLOAT, Carburetor BS-84004822
...
137
GASKET, Float Bowl BS-84004205
...
163
GASKET, Air Cleaner BS-84004165
...
216
LINK, Choke BS-84005080
...
254
DRAIN, Carburetor Bowl BS-595322
...
276
WASHER, Sealing BS-797632
...
464
SEAL, O-Ring (Fuel Shut-off Valve) BS-565320
...
472
KNOB, Control BS-84002963
...
633
SEAL, Choke/Throttle Shaft BS-84004398
...
680
WASHER (Choke Lever) BS-84005074
...
951
LEVER, Choke BS-84004369
...
975
BOWL, Float BS-84004204
