Briggs and Stratton 19T132-0002-H5

Model: 19T132-0002-H5

Back To Assemblies

Save Part Not Listed?
product name

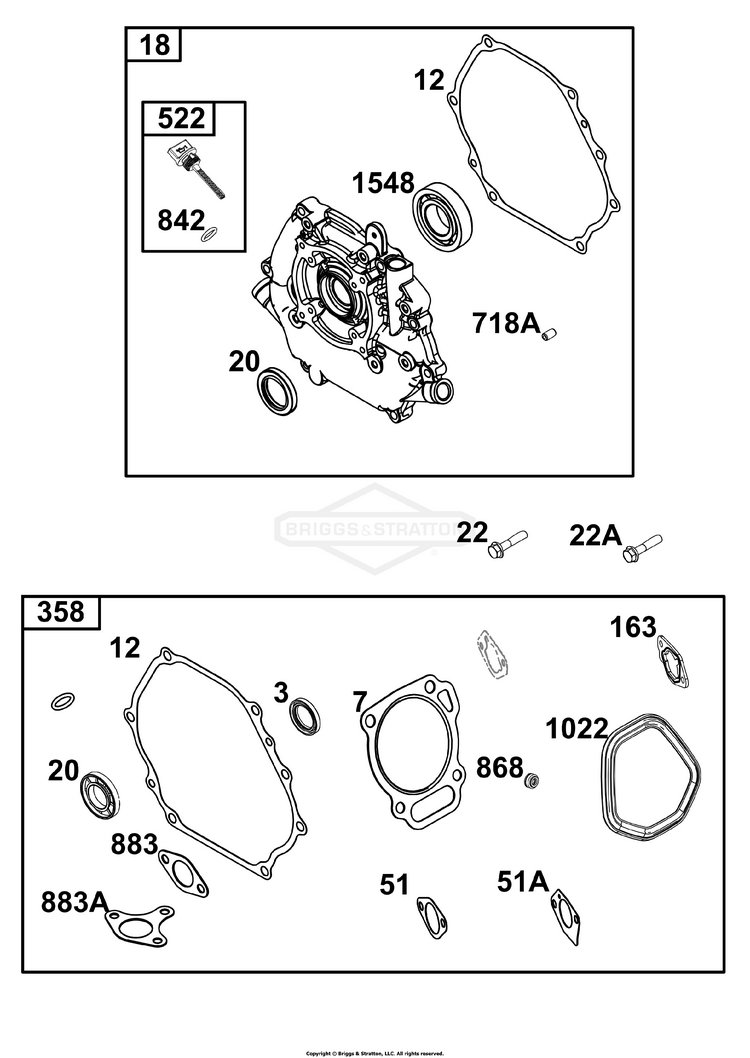

Crankcase Cover/Sump and Lubrication Group

...
...
12
GASKET, Crankcase BS-592597
...
18
COVER, CRANKCASE BS-84004352
...
20
SEAL, Oil (PTO Side) BS-591793
...
22
SCREW (Crankcase Cover/Sump) BS-797776
...
22A
SCREW (Crankcase Cover/Sump) BS-593107
...
522
PLUG, Dipstick/Fill BS-84004387
...
842
SEAL, O-Ring (Dipstick Cap) BS-84004385
...
883A
GASKET, Exhaust (Part information located in Exhaust Group.) BS-799797
...
1548
BEARING, Ball (Crankcase Cover/Sump) BS-591792
