Briggs and Stratton 19N332-0001-H7

Model: 19N332-0001-H7

Back To Assemblies

Save Part Not Listed?
product name

Controls Group

...
...
98
KIT-IDLE SPEED BS-799928
...
202
LINK, Mechanical Governor BS-591834
...
209
SPRING, Governor BS-84002364
...
211
SPRING, Governed Idle BS-799927
...
222
BRACKET, Control BS-84006792
...
227
LEVER, Governor Control BS-592616
...
232
SPRING, Governor Link BS-797809
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-699492
...
281
PANEL, Control BS-84006800
...
281A
PANEL, Control BS-84006801
...
318
SCREW (Control Bracket) BS-798618
...
347
SWITCH, Rocker BS-84006836
...
485
KNOB, Control BS-797339
...
493
BRACKET, Mounting BS-84006802
...
505
NUT (Governor Control Lever) BS-690939
...
562
BOLT (Governor Control Lever) BS-797230
...
663
SCREW BS-799846
...
789
HARNESS, Wiring BS-593082
...
1012
RETAINER, Link BS-590378

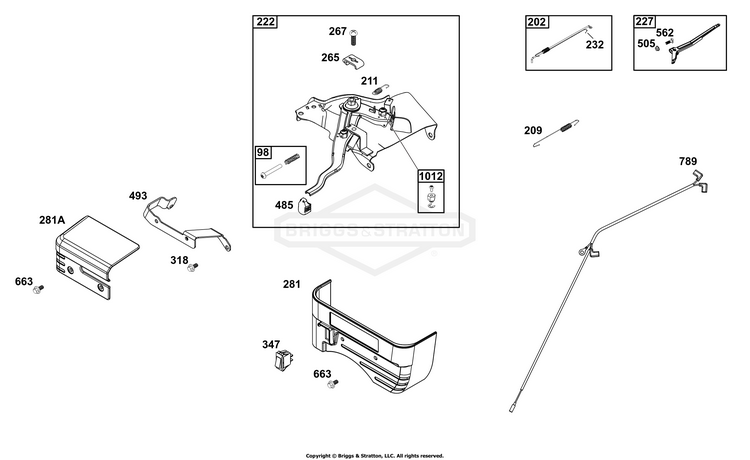

Schematic Image Zoomed
