Briggs and Stratton 19N332-0001-H7

Model: 19N332-0001-H7

Back To Assemblies

Save Part Not Listed?
product name

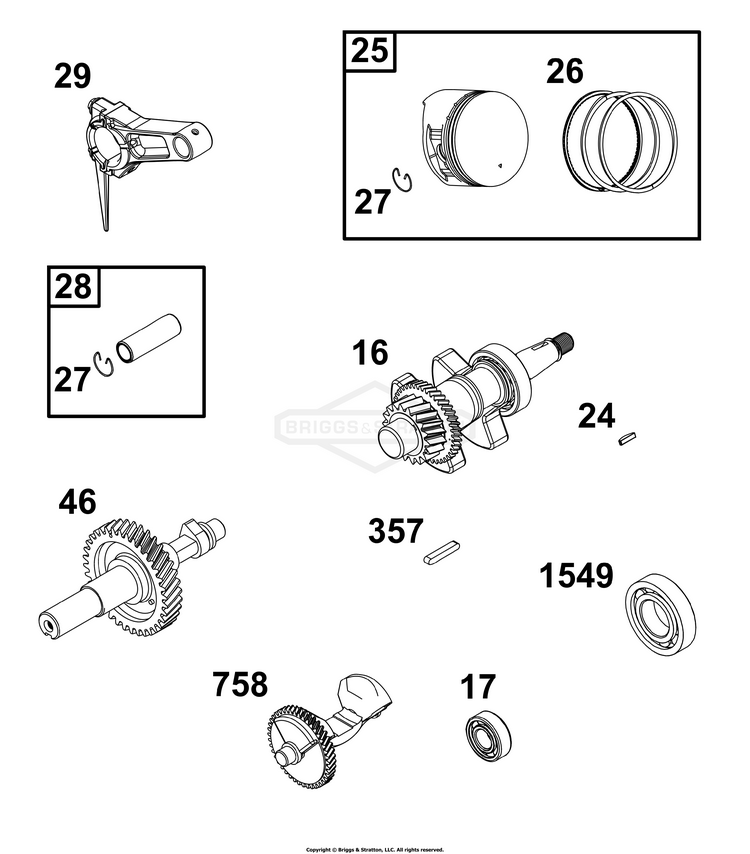

Crankshaft Group

...
...
16
CRANKSHAFT BS-84006804
...
17
BEARING, Ball BS-797764
...
24
KEY, Flywheel BS-797286
...
25
PISTON ASSEMBLY BS-84006817
...
25
PISTON ASSEMBLY (.010" Oversize) BS-593108
...
25
PISTON ASSEMBLY (.020" Oversize) BS-593109
...
26
SET, Ring BS-592614
...
26
SET, Ring (.010" Oversize) BS-593110
...
26
SET, Ring (.020" Oversize) BS-593111
...
27
LOCK, Piston Pin BS-592044
...
28
PIN, Piston BS-592045
...
29
ROD, Connecting BS-84006807
...
46
CAMSHAFT BS-84006805
...
357
KEY, Drive Pulley BS-591054
...
758
COUNTERWEIGHT BS-84006806
...
1549
BEARING, Ball (Crankshaft) BS-591792
