Briggs and Stratton 19N236-0002-G1

Model: 19N236-0002-G1

Back To Assemblies

Save Part Not Listed?
product name

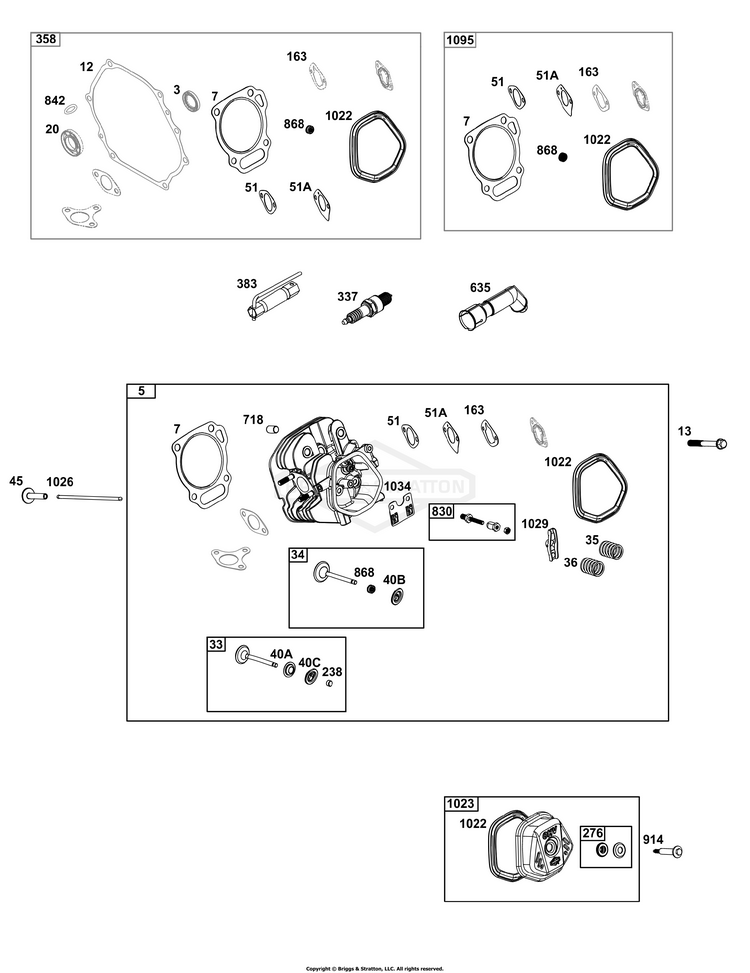

Cylinder Head Group

...
...
5
HEAD, Cylinder BS-593093
...
7
GASKET, Cylinder Head BS-592834
...
13
SCREW (Cylinder Head) BS-797791
...
33
VALVE, Exhaust BS-592612
...
34
VALVE, Intake BS-592611
...
35
SPRING, Valve (Intake) BS-591814
...
36
SPRING, Valve BS-591814
...
40A
RETAINER, Valve BS-797782
...
40B
RETAINER, Valve BS-591815
...
40C
RETAINER, Valve BS-591816
...
45
TAPPET, Valve BS-797786
...
51
GASKET, Intake BS-591779
...
51A
GASKET, Intake BS-591798
...
238
CAP, Valve BS-591817
...
276
WASHER, Sealing BS-797847
...
337
PLUG, Spark BS-798615
...
358
GASKET SET, ENGINE (Service Kits can include parts not for this engine.) BS-84004382
...
383
WRENCH, Spark Plug BS-19576S
...
635
BOOT, Spark Plug BS-797685
...
830
STUD, Rocker Arm BS-591088
...
868
SEAL, Valve BS-797854
...
914
SCREW (Rocker Cover) BS-797848
...
1022
GASKET, Rocker Cover BS-797846
...
1023
COVER, Rocker BS-799778
...
1026
ROD, Push BS-591818
...
1029
ARM, Rocker BS-591087
...
1034
GUIDE, Push Rod BS-591819
...
1095
GASKET SET, Valve BS-593113
