Briggs and Stratton 19N137-0030-H5

Model: 19N137-0030-H5

Back To Assemblies

Save Part Not Listed?
product name

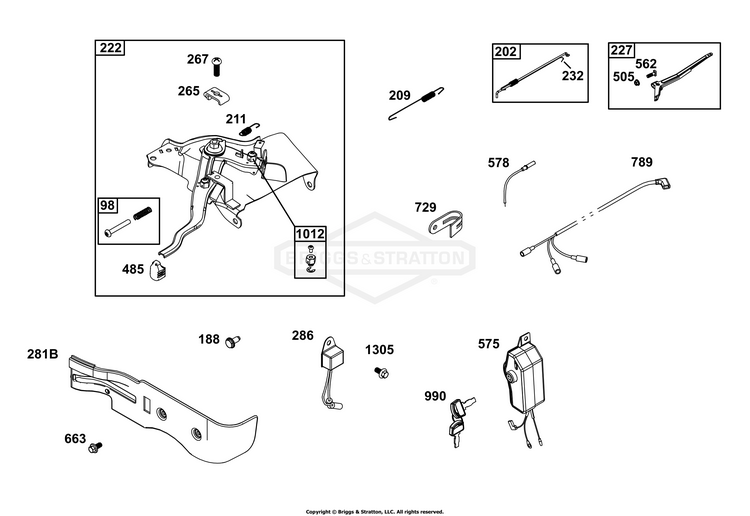

Controls Group

...
...
98
KIT, Idle Speed BS-592978
...
188
SCREW (Control Bracket) BS-798618
...
202
LINK, Mechanical Governor BS-591834
...
209
SPRING, Governor BS-84002364
...
211
SPRING, Governed Idle BS-799927
...
222
BRACKET, Control BS-593105
...
227
LEVER, Governor Control BS-592616
...
232
SPRING, Governor Link BS-797809
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-699492
...
281B
PANEL, Control BS-593732
...
286
MODULE, Oil Sensor BS-84004388
...
485
KNOB, Control BS-797339
...
505
NUT (Governor Control Lever) BS-690939
...
562
BOLT (Governor Control Lever) BS-797230
...
575
SWITCH, Starting BS-593734
...
578
WIRE ASSEMBLY BS-596032
...
663
SCREW (Control Panel) BS-799846
...
729
CLIP, Wire BS-592311
...
789
HARNESS, Wiring BS-590372
...
990
SET, Key BS-590996
...
1012
RETAINER, Link BS-590378
...
1305
SCREW (Oil Sensor Module) BS-798618
