Briggs and Stratton 19N132-0108-F1

Model: 19N132-0108-F1

Back To Assemblies

Save Part Not Listed?
product name

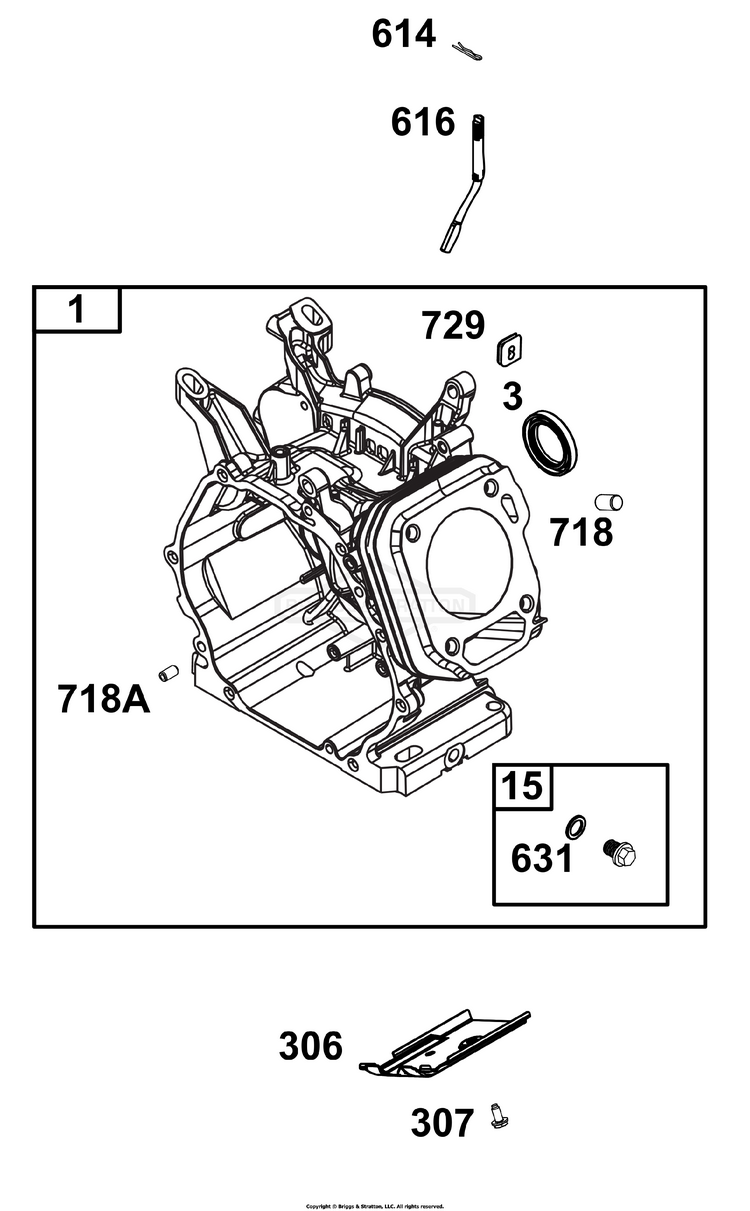

Cylinder Group

...
...
1
CYLINDER ASSEMBLY BS-593106
...
3
SEAL, Oil (Magneto Side) BS-591794
...
15
PLUG, Oil Drain BS-797793
...
306
SHIELD, Cylinder BS-591790
...
307
SCREW (Cylinder Shield) BS-798618
...
614
PIN, Cotter BS-797229
...
616
CRANK, Governor BS-592615
...
631
WASHER (Oil Drain Plug) BS-797794
...
718
PIN, Locating BS-797792
...
718A
PIN, Locating BS-797761
...
729
CLIP, Wire BS-797750
