Briggs and Stratton 19N132-0102-H5

Model: 19N132-0102-H5

Back To Assemblies

Save Part Not Listed?
product name

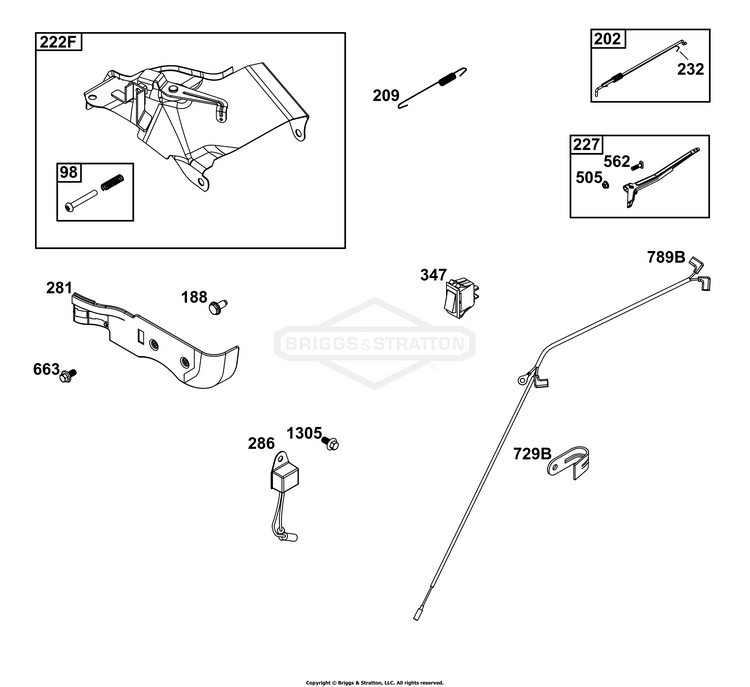

Controls Group

...
...
98
KIT, Idle Speed BS-592978
...
188
SCREW (Control Bracket) BS-798618
...
202
LINK, Mechanical Governor BS-591834
...
209
SPRING, Governor BS-591786
...
222F
BRACKET, Control BS-593315
...
227
LEVER, Governor Control BS-592616
...
232
SPRING, Governor Link BS-797809
...
281
PANEL, Control BS-593314
...
286
MODULE, Oil Sensor BS-84004388
...
347
SWITCH, Rocker BS-797340
...
505
NUT (Governor Control Lever) BS-690939
...
562
BOLT (Governor Control Lever) BS-797230
...
663
SCREW (Control Panel) BS-799846
...
729B
CLIP, Wire BS-592311
...
789B
HARNESS, Wiring BS-593082
...
1305
SCREW (Oil Sensor Module) BS-798618
