Briggs and Stratton 19L237-0427-G1

Model: 19L237-0427-G1

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

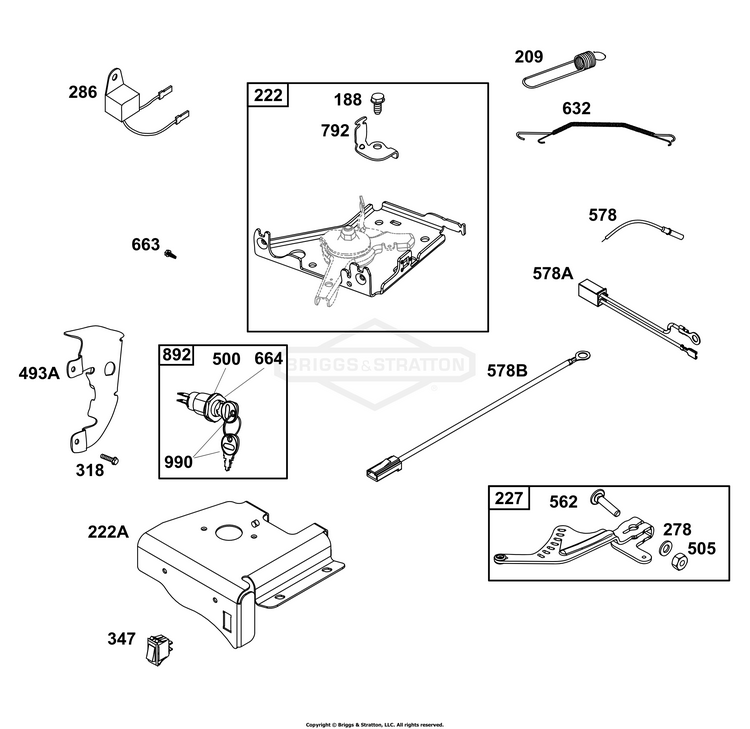

Controls Group

...
...
188
SCREW (Control Bracket) BS-699479
...
209
SPRING, Governor BS-799058
...
222
BRACKET, Control BS-798478
...
222A
BRACKET, CONTROL BS-597142
...
227
LEVER, Governor Control BS-799049
...
278
WASHER (Governor Control Lever) BS-798196
...
286
MODULE, Oil Sensor BS-594800
...
318
SCREW (Mounting Bracket) BS-691693
...
347
SWITCH, Rocker BS-697854
...
493A
BRACKET, Mounting BS-798803
...
500
WASHER (Key Switch) BS-691086
...
505
NUT (Governor Control Lever) BS-793515
...
562
BOLT (Governor Control Lever) BS-798197
...
578
WIRE ASSEMBLY BS-798802
...
578A
WIRE ASSEMBLY BS-692306
...
578B
WIRE ASSEMBLY BS-596063
...
632
LINK/SPRING ASSEMBLY BS-84002137
...
663
SCREW (Control Panel) BS-699492
...
664
NUT (Key Switch) BS-691087
...
792
BRACKET, Fixed Speed BS-798550
...
892
SWITCH, Key BS-690646
...
990
SET, Key BS-691959
