Briggs and Stratton 19L237-0427-G1

Model: 19L237-0427-G1

Back To Assemblies

Save Part Not Listed?
product name

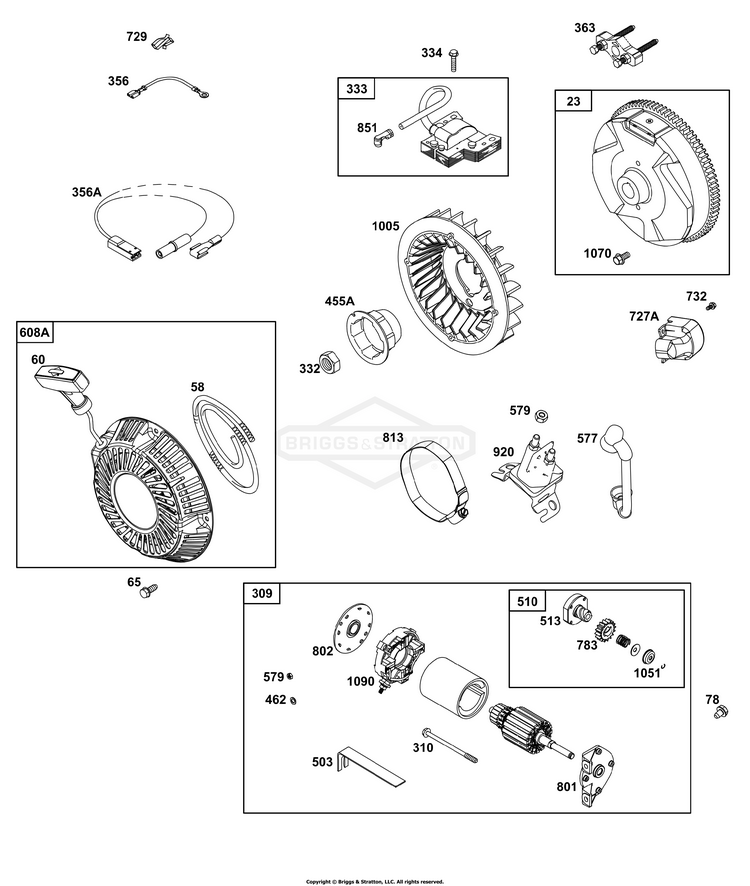

Flywheel, Ignition, and Starter Group

...
...
23
FLYWHEEL BS-795497
...
58
ROPE, Starter BS-693389
...
60
GRIP-STARTER ROPE BS-490652
...
65
SCREW (Rewind Starter) BS-699228
...
78
SCREW (Flywheel Guard) BS-594737
...
309
MOTOR, Starter BS-695479
...
310
SCREW (Starter Motor) BS-690323
...
332
NUT (Flywheel) BS-794824
...
333
ARMATURE-MAGNETO BS-591459
...
334
SCREW (Magneto Armature) BS-699477
...
356
WIRE, Stop BS-695630
...
356A
WIRE, Stop BS-695295
...
363
PULLER, Flywheel BS-19203
...
455A
CUP, Flywheel BS-84007753
...
462
WASHER (Starter Cable) BS-691261
...
503
STRAP, Starter BS-691532
...
510
MOTOR, Starter BS-593934
...
513
CLUTCH, Drive BS-692024
...
577
CABLE, Starter BS-690795
...
579
NUT (Starter Cable) BS-691029
...
608A
STARTER, Rewind BS-84007752
...
727A
COVER, Starter Drive BS-697465
...
729
CLIP, Wire BS-799133
...
732
SCREW (Starter Drive Cover) BS-699200
...
783
GEAR, Pinion BS-593935
...
801
CAP-DRIVE BS-694482
...
802
CAP, End BS-691286
...
813
CLAMP BS-690635
...
851
TERMINAL, Spark Plug BS-493880S
...
920
SOLENOID, Starter BS-846820
...
1005
FAN, Flywheel BS-794815
...
1051
RING, Retaining BS-691265
...
1070
SCREW (Flywheel Fan) BS-794821
...
1090
RETAINER, Brush BS-691293
