product name

Briggs and Stratton 19L237-0427-G1

Model: 19L237-0427-G1

Back To Assemblies

Save Part Not Listed?
product name

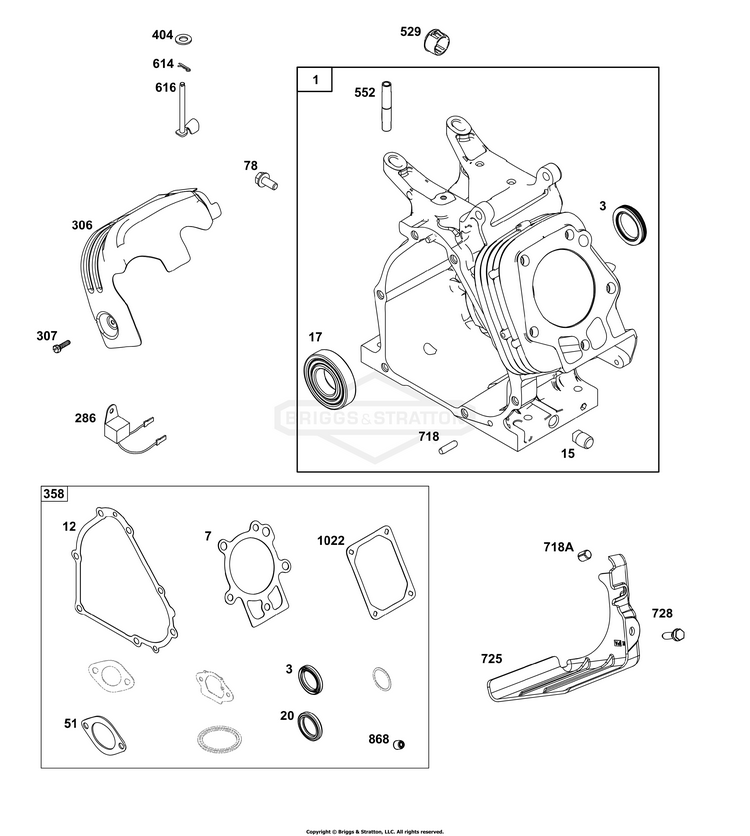

Cylinder Group

...
...
1
CYLINDER ASSEMBLY BS-799046
...
3
SEAL, Oil (Magneto Side) BS-798991
...
15
PLUG-OIL DRAIN BS-691686
...
17
BEARING, Ball (Cylinder) BS-798993
...
306
SHIELD, Cylinder BS-798992
...
307
SCREW (Cylinder Shield) BS-794822
...
358
GASKET SET, Engine (Service Kits can include parts not for this engine.) BS-798800
...
404
WASHER (Governor Crank) BS-795759
...
529
GROMMET BS-791822
...
552
BUSHING, Governor Crank BS-694674
...
614
PIN, Cotter BS-691620
...
616
CRANK, Governor BS-795758
...
718
PIN, Locating BS-592860
...
718A
PIN, Locating BS-695178
...
725
SHIELD, Heat BS-590347
...
728
SCREW (Heat Shield) BS-699481
