Briggs and Stratton 19L237-0004-H5

Model: 19L237-0004-H5

Back To Assemblies

Save Part Not Listed?
product name

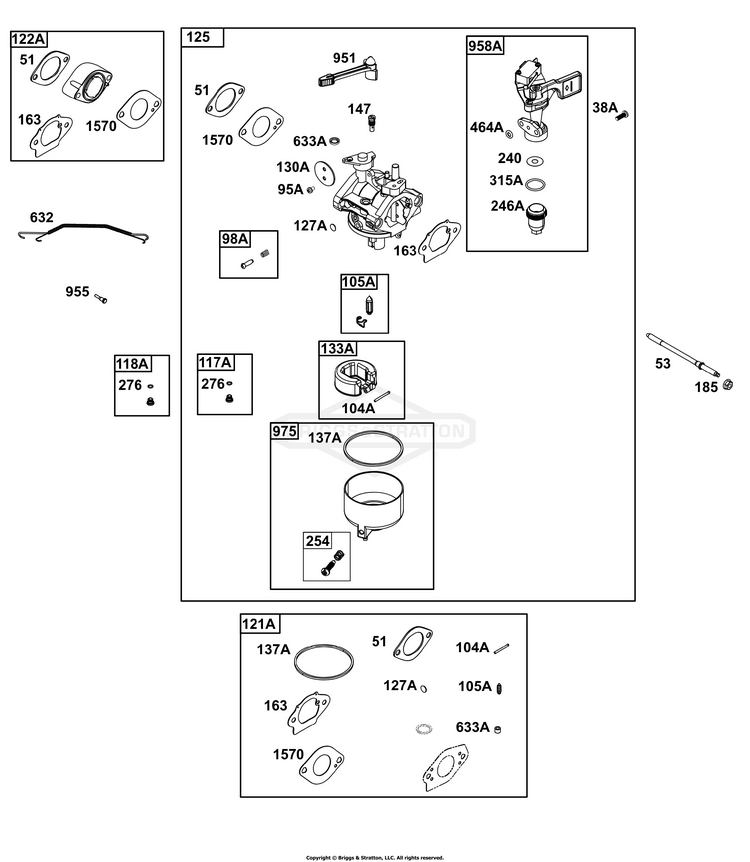

Carburetor Group

...
...
38A
SCREW BS-595328
...
53
STUD BS-798988
...
95A
SCREW (Throttle Valve) BS-797161
...
98A
KIT, Idle Speed BS-847139
...
104A
PIN, Float Hinge BS-597533
...
105A
VALVE, Float Needle BS-84004840
...
117A
JET, Main (Standard) BS-84004489
...
118A
JET, MAIN (High Altitude) BS-84004492
...
121A
KIT, Carburetor Overhaul (Service Kits can include parts not for this engine.) BS-84004975
...
122A
SPACER, Carburetor BS-84004776
...
125
CARBURETOR BS-84003204
...
127A
PLUG, Welch BS-84004841
...
130A
VALVE, Throttle BS-84004397
...
133A
FLOAT, Carburetor BS-84004490
...
137A
GASKET, Float Bowl BS-84004205
...
147
JET, Pilot BS-594872
...
163
GASKET, Air Cleaner BS-798962
...
240
FILTER, Fuel BS-597039
...
246A
BOWL, Fuel Filter BS-597043
...
254
DRAIN, Carburetor Bowl BS-595322
...
276
WASHER, Sealing BS-84004488
...
315A
GASKET, Fuel Bowl BS-597735
...
464A
SEAL, O-Ring BS-595320
...
633A
SEAL, Choke/Throttle Shaft BS-84004398
...
951
LEVER, Choke BS-798528
...
955
PLUG, Carburetor BS-595329
...
958A
VALVE, Fuel Shut Off BS-84004839
...
975
BOWL, Float BS-84004204
...
1570
GASKET, Spacer BS-84005011
