Briggs and Stratton 19L236-0143-F1

Model: 19L236-0143-F1

Back To Assemblies

Save Part Not Listed?
product name

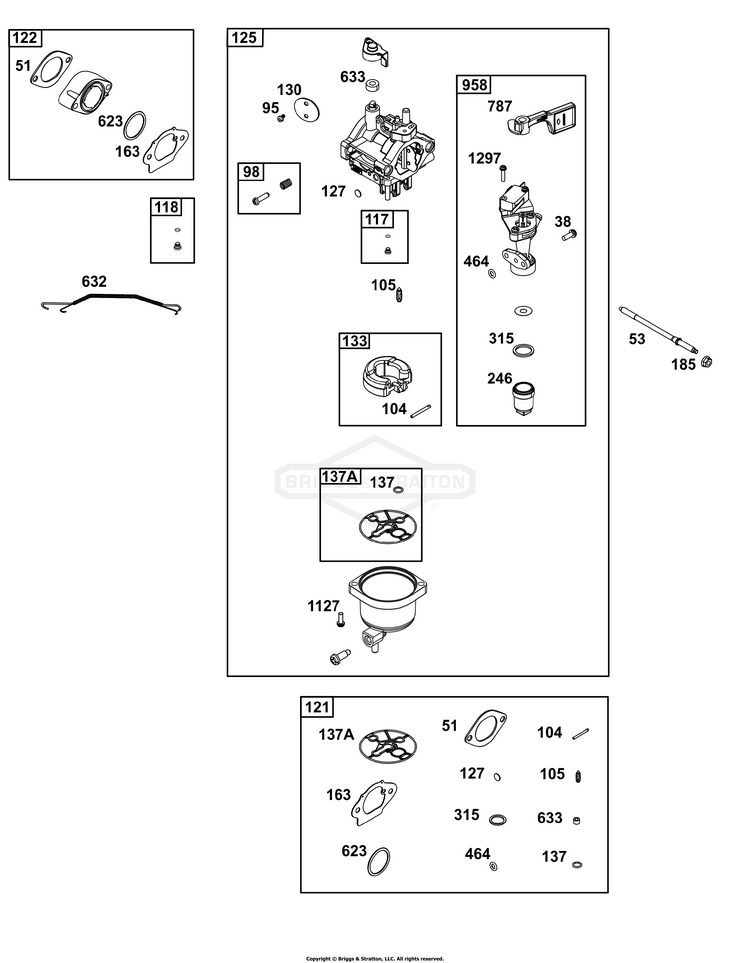

Carburetor Group

...
...
38
SCREW BS-698557
...
53
STUD (Carburetor) BS-798988
...
95
SCREW BS-690718
...
98
KIT, Idle Speed BS-695408
...
104
PIN, Float Hinge BS-694918
...
105
VALVE, Float Needle BS-696136
...
117
JET, Main BS-698788
...
118
JET, Main (High Altitude) BS-799134
...
121
KIT, Carburetor Overhaul (Service Kits can include parts not for this engine.) BS-799722
...
122
SPACER, Carburetor BS-799766
...
125
CARBURETOR BS-594743
...
127
PLUG, Welch BS-690727
...
130
VALVE, Throttle BS-696139
...
133
FLOAT, Carburetor BS-694914
...
137
GASKET, Float Bowl BS-698781
...
137A
GASKET, Float Bowl BS-799991
...
163
GASKET, Air Cleaner BS-798962
...
246
BOWL-FUEL VALVE-STRAINER BS-595153
...
315
BOWL-FUEL VALVE-STRAINER BS-595153
...
464
SEAL, O-Ring BS-698550
...
623
SEAL, O-Ring BS-799051
...
633
SEAL, Choke/Throttle Shaft BS-690722
...
787
ARM, Lever BS-798635
...
958
VALVE, Fuel Shut Off BS-799073
...
1127
SCREW BS-695407
...
1297
SCREW BS-798637
