Briggs and Stratton 19L236-0143-F1

Model: 19L236-0143-F1

Back To Assemblies

Save Part Not Listed?
product name

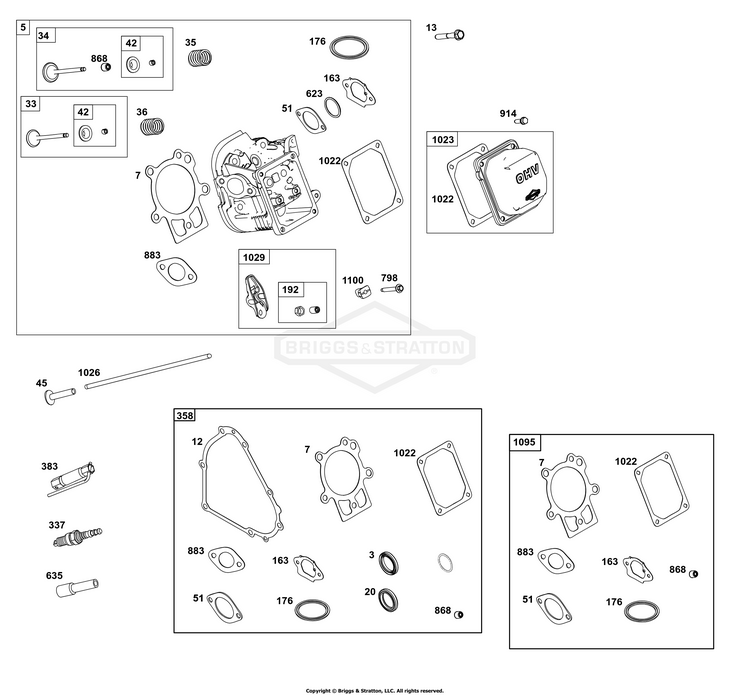

Cylinder Head Group

...
...
5
HEAD, Cylinder BS-799858
...
7
GASKET, Cylinder Head BS-694872
...
13
SCREW (Cylinder Head) BS-794829
...
33
VALVE, EXHAUST BS-84013574
...
34
VALVE, INTAKE BS-84013569
...
35
SPRING, Valve (Intake) BS-694865
...
36
SPRING, Valve (Exhaust) BS-694865
...
42
KEEPER, Valve BS-84012308
...
45
TAPPET, Valve BS-690977
...
51
GASKET, Intake BS-590396
...
192
ADJUSTER. Rocker Arm BS-690083
...
337
PLUG, Spark BS-555737
...
383
WRENCH, Spark Plug BS-19576S
...
623
SEAL, O-Ring (Carburetor Spacer) BS-799051
...
635
BOOT, Spark Plug BS-691909
...
798
SCREW (Rocker Arm) BS-697890
...
868
SEAL, Valve BS-690968
...
914
SCREW (Rocker Cover) BS-794827
...
1022
GASKET, Rocker Cover BS-690971
...
1023
COVER, Rocker BS-697691
...
1026
ROD, Push BS-592673
...
1029
ARM, Rocker BS-690972
...
1095
GASKET SET, Valve (Service Kits can include parts not for this engine.) BS-798801
...
1100
PIVOT, Rocker Arm BS-791959
