Briggs and Stratton 181D02-0005-01

Model: 181D02-0005-01

Back To Assemblies

Save Part Not Listed?
product name

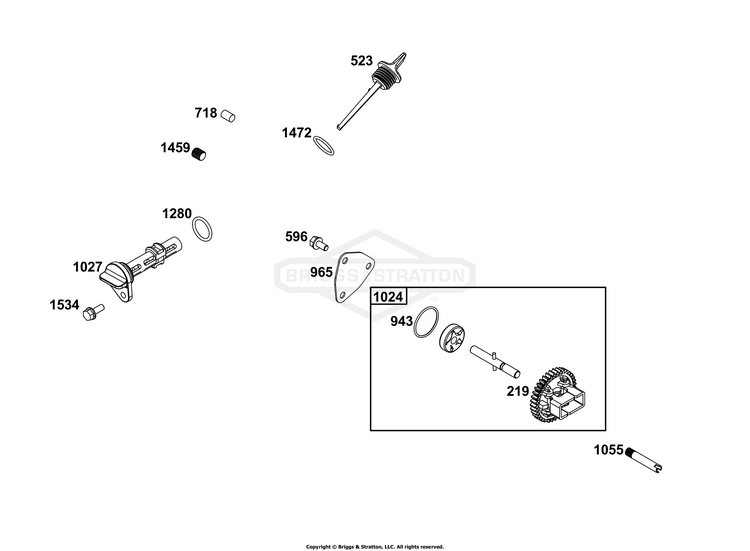

Lubrication Group

...
...
219
GEAR, Governor BS-84005405
...
523
DIPSTICK BS-84005391
...
596
SCREW (Oil Pump) BS-84005407
...
718
PIN, Locating BS-84005403
...
943
SEAL, O-Ring (Oil Pump Cover) BS-84005410
...
965
COVER, Oil Pump BS-84005408
...
1024
PUMP, Oil BS-84005409
...
1027
FILTER, Oil BS-84005461
...
1055
TUBE, Oil Pump BS-84005404
...
1280
SEAL, O-Ring (Oil Filter Cover) BS-84005465
...
1459
SCREW, Set BS-84005459
...
1472
SEAL, O-Ring (Dipstick/Fill Plug) BS-84005392
...
1534
SCREW, Set (Oil Filter Housing) BS-84005459
