Briggs and Stratton 15T202-1111-F8

Model: 15T202-1111-F8

Back To Assemblies

Save Part Not Listed?
product name

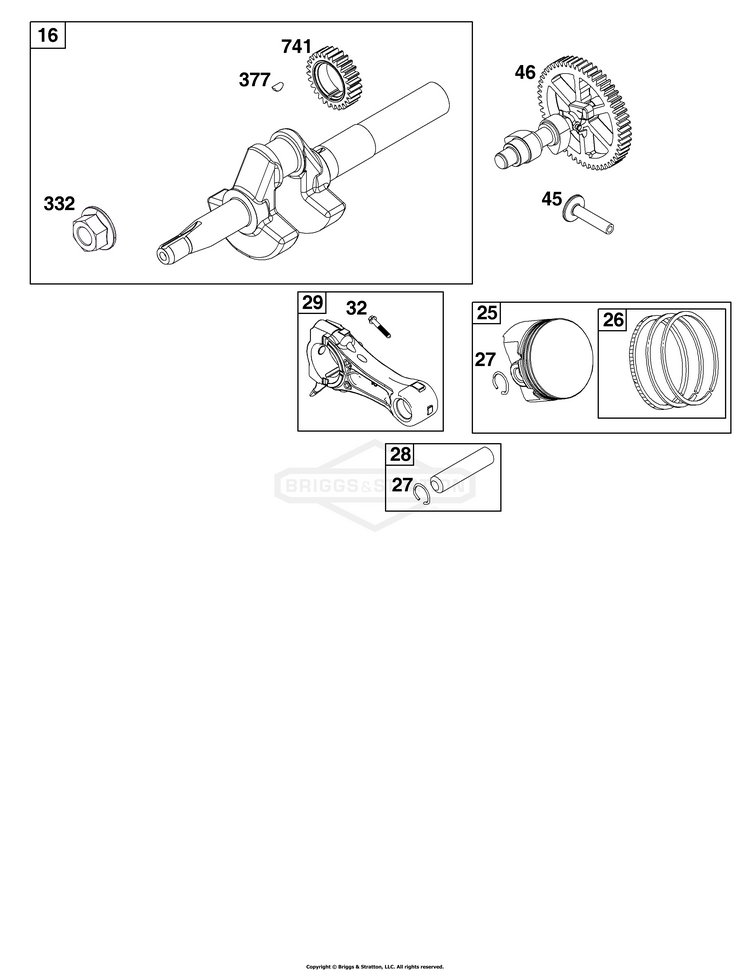

Crankshaft Group

...
...
16
CRANKSHAFT BS-797070
...
25
PISTON ASSEMBLY (Standard) BS-791786
...
25
PISTON ASSEMBLY (.020 Oversize) BS-791791
...
26
SET, Ring (Standard) BS-791787
...
26
SET, Ring (.020" Oversize) BS-791792
...
27
LOCK, Piston Pin BS-690975
...
28
PIN, Piston (Standard) BS-690229
...
29
ROD, Connecting BS-791783
...
32
SCREW (Connecting Rod) BS-791784
...
46
CAMSHAFT BS-693404
...
377
KEY, Woodruff BS-690979
...
741
GEAR, Timing BS-695087
