Briggs and Stratton 15T202-1111-F8

Model: 15T202-1111-F8

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Carburetor Group

...
...
95
SCREW (Throttle Valve) BS-691636
...
97
SHAFT, Throttle BS-797628
...
98
KIT, Idle Speed BS-797156
...
98
KIT, Idle Speed BS-797156
...
104
PIN, Float Hinge BS-797622
...
105
VALVE, Float Needle BS-797139
...
105A
VALVE, Float Needle BS-595324
...
109
SHAFT, Choke BS-690023
...
117
JET, Main (Standard) BS-798652
...
118
JET, Main (High Altitude) BS-799178
...
121
KIT, Carburetor Overhaul (Service Kits may include extra parts not specific to this engine.) BS-792006
...
122
SPACER, Carburetor BS-795643
...
125
CARBURETOR BS-798654
...
127
PLUG, Welch BS-797633
...
130
VALVE, Throttle BS-797630
...
133
FLOAT, Carburetor BS-797136
...
137
GASKET, Float Bowl BS-797625
...
163
GASKET, Air Cleaner (Air Cleaner) BS-696024
...
276
WASHER, Sealing BS-797632
...
365
SCREW (Carburetor/Throttle Body) BS-699484
...
633
SEAL, Choke/Throttle Shaft BS-693867
...
692
SPRING, Detent BS-797624
...
703
CLIP BS-795222
...
804
CANISTER, Carbon (EVAP) BS-795223
...
825
HOSE, Air BS-795226
...
975
BOWL, Float BS-797631
...
987
SEAL, Choke/Throttle Shaft BS-797629

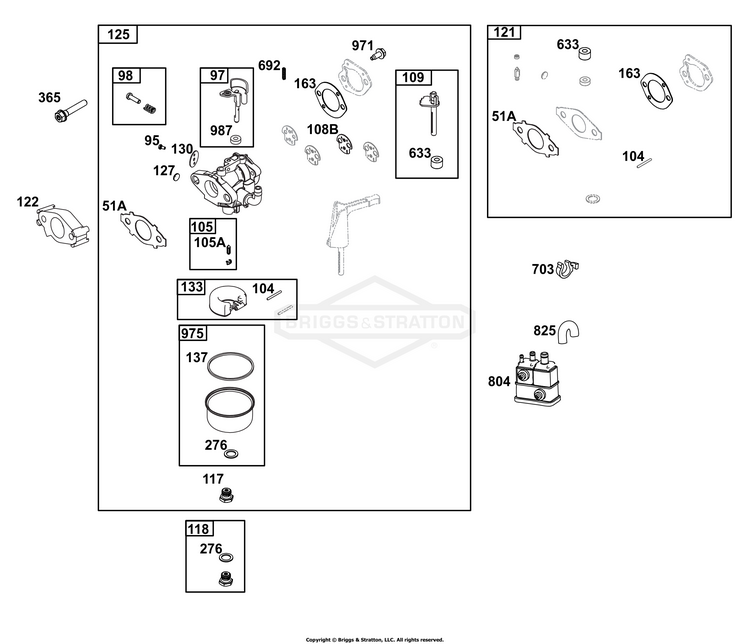

Schematic Image Zoomed
