Briggs and Stratton 15T202-1111-F8

Model: 15T202-1111-F8

Back To Assemblies

Save Part Not Listed?
product name

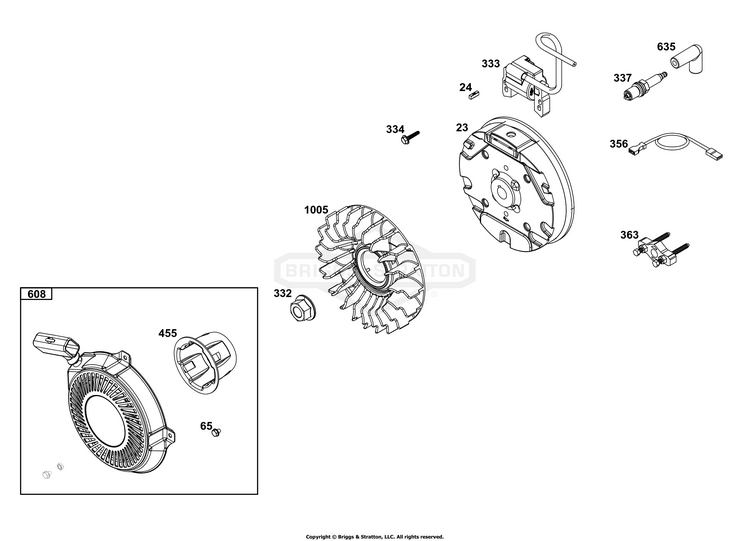

Flywheel, Ignition, and Starter Group

...
...
23
FLYWHEEL BS-798821
...
65
SCREW (Rewind Starter) BS-699228
...
332
NUT (Flywheel) BS-591988
...
333
ARMATURE, Magneto BS-796964
...
334
SCREW (Magneto Armature) BS-699477
...
356
WIRE, Stop BS-692390
...
363
PULLER, Flywheel BS-19203
...
455
CUP, Flywheel BS-591302
...
608
STARTER, Rewind BS-591301
...
1005
FAN, Flywheel BS-794273
