Briggs and Stratton 13L332-0313-F8

Model: 13L332-0313-F8

Back To Assemblies

Save Part Not Listed?
product name

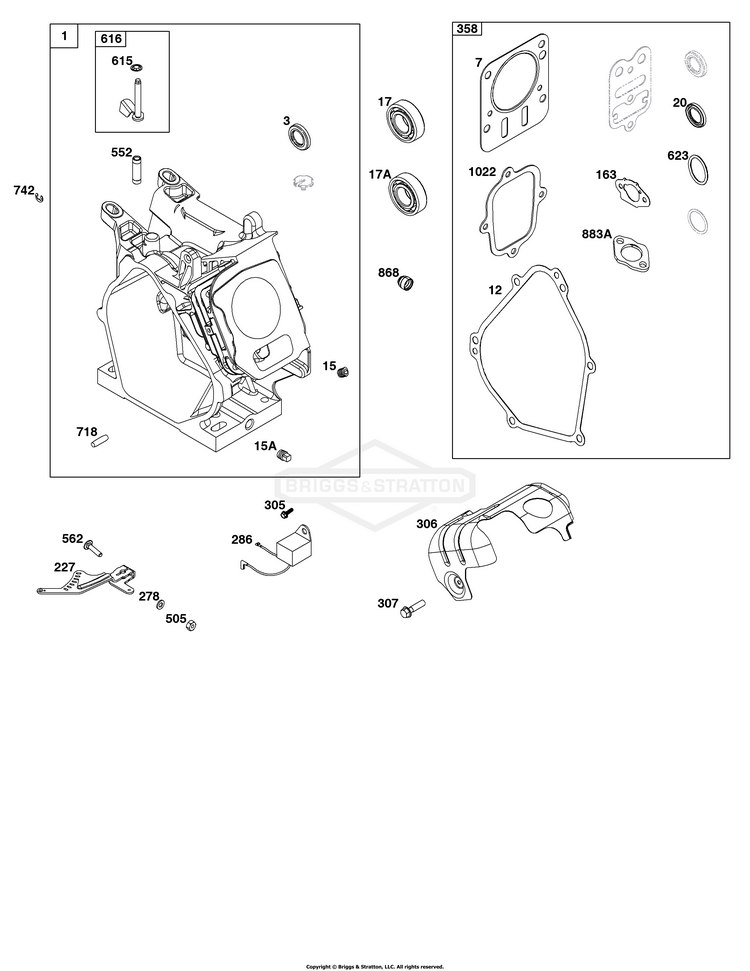

Cylinder Group

...
...
1
CYLINDER ASSEMBLY BS-593004
...
3
SEAL, Oil (Magneto Side) BS-299819S
...
15
PLUG, Oil Drain BS-555578
...
15A
PLUG-OIL DRAIN BS-691686
...
17
BEARING, Ball (Cylinder) BS-798531
...
17A
BEARING, Ball (Cylinder) BS-798538
...
306
SHIELD, Cylinder BS-594762
...
307
SCREW (Cylinder Shield) BS-794822
...
358
GASKET SET, Engine (Service Kits may include extra parts not specific to this engine.) BS-798540
