Briggs and Stratton 13L332-0313-F8

Model: 13L332-0313-F8

Back To Assemblies

Save Part Not Listed?

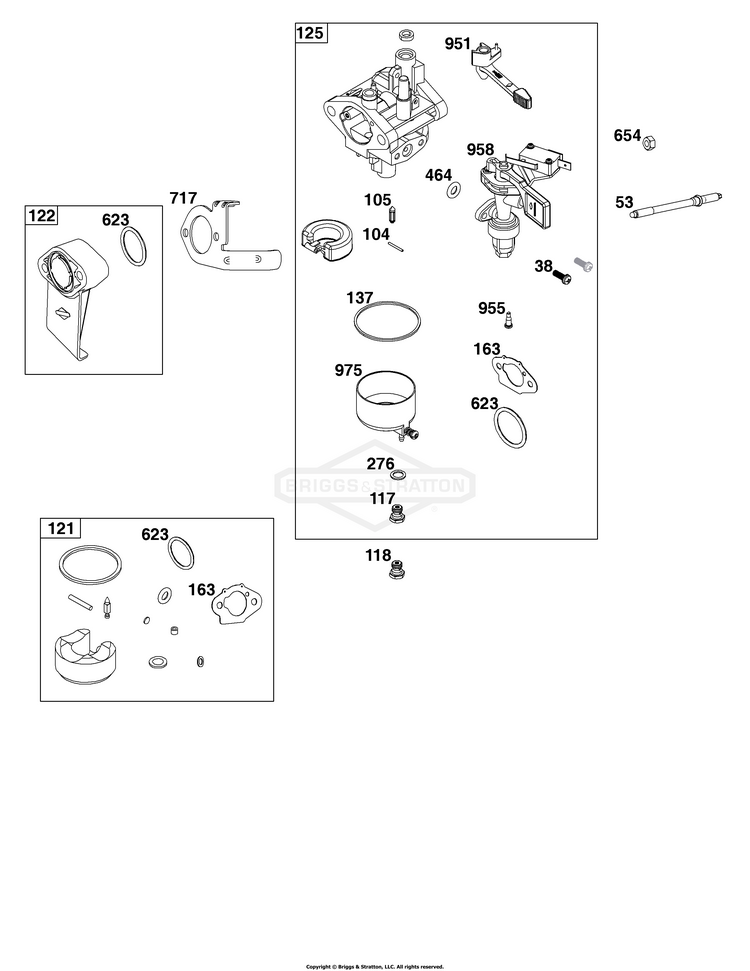

Carburetor Group

SCREW (Part information located in Fuel Supply Group.) BS-JUMPTO38

STUD (Carburetor) BS-798524

104

PIN, Float Hinge BS-597533

105

VALVE, Float Needle BS-595324

117

JET, Main (Standard) BS-595325

118

JET, Main (High Altitude) (.020 Oversize) BS-595326

121

KIT, Carburetor Overhaul (Service Kits may include extra parts not specific to this engine.) BS-798521

122

SPACER, Carburetor BS-798510

125

CARBURETOR BS-595318

137

GASKET, Float Bowl BS-798932

163

GASKET, Air Cleaner (Air Cleaner) BS-798508

276

WASHER, Sealing BS-797632

464

SEAL, O-Ring (Fuel Shut-off Valve) BS-595320

623

SEAL, O-Ring (Carburetor Spacer) BS-798511

654

NUT (Carburetor) BS-794838

951

LEVER, Choke BS-798528

955

PLUG, Carburetor BS-595329

958

VALVE, Fuel Shut Off BS-595319

975

BOWL, Float BS-597739
