Briggs and Stratton 13L332-0313-F8

Model: 13L332-0313-F8

Back To Assemblies

Save Part Not Listed?
product name

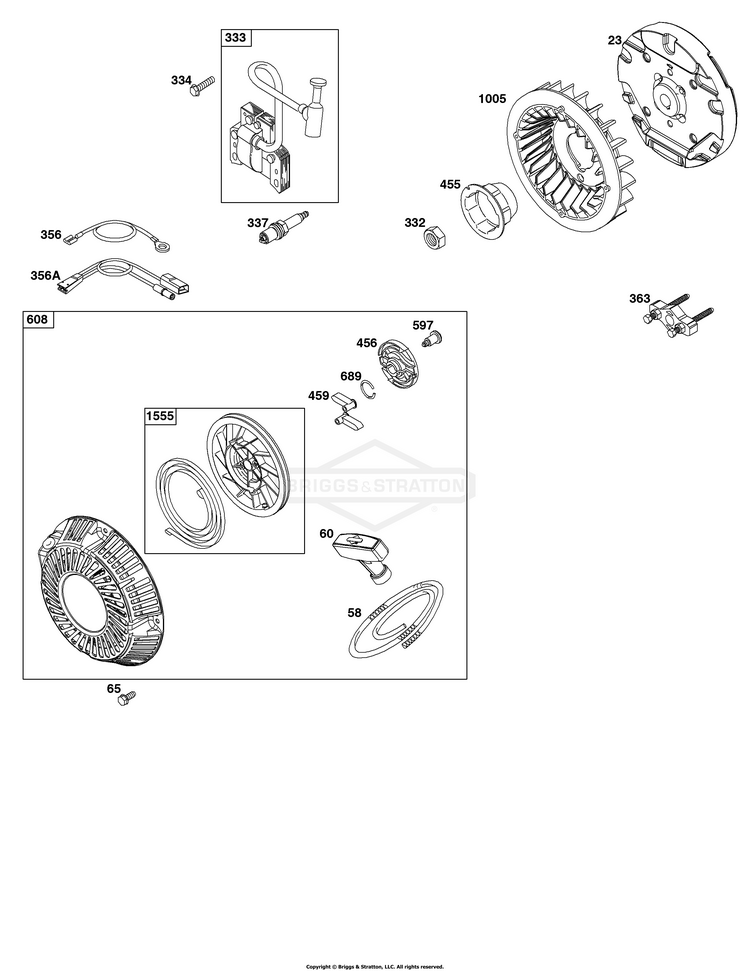

Flywheel, Ignition, and Starter Group

...
...
23
FLYWHEEL BS-798530
...
58
ROPE, Starter (Cut To Required Length) BS-693389
...
60
GRIP, Starter Rope BS-557063
...
65
SCREW (Rewind Starter) BS-699228
...
332
NUT (Flywheel) BS-591988
...
333
ARMATURE, Magneto BS-590818
...
334
SCREW (Magneto Armature) BS-699477
...
356
WIRE, Stop BS-695630
...
356A
WIRE, Stop BS-798498
...
363
PULLER, Flywheel BS-19203
...
455
CUP, Flywheel BS-591302
...
456
PLATE-PAWL FRICTION BS-692299
...
459
PAWL-RATCHET BS-281505S
...
597
SCREW (Pawl Friction Plate) BS-691696
...
608
STARTER, Rewind BS-84007752
...
689
SPRING-FRICTION BS-691855
...
1005
FAN, Flywheel BS-794273
...
1555
PULLEY/SPRING ASSEMBLY BS-791849
